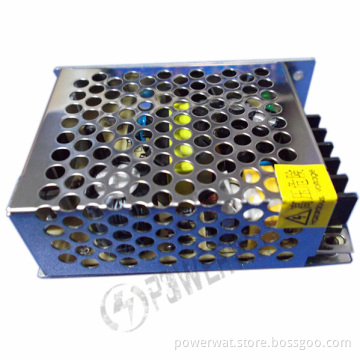

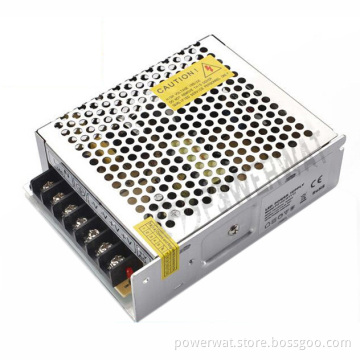

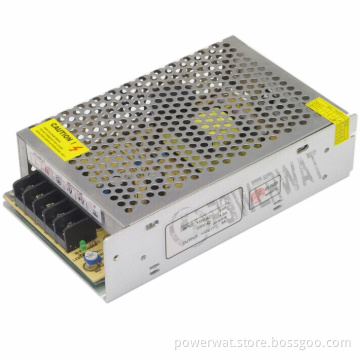

200W Switching Power Supply

200W Switching Power Supply
Features
Universal AC input / Full range
Low leakage current <0.75mA
Protections: Short circuit / Overload / Over voltage / Over temperature
Free air convection for 140W and forced air convection for 200W
Fixed switching frequency at 100KHz
2 years warranty
Specification
AC INPUT VOLTAGE
90~264 VAC, 47~440Hz / 127~370VDC.
POWER FACTOR (Typ. )
PF>0.95/230VAC PF>0.98/115VAC at full load
WORKING TEMP.
Whole series can operate from -20~70 degree, please refer to the derating curves.
WORKING HUMIDITY
20~90% RH non-condensing.
STORAGE TEMP., HUMIDITY
-40~+85, 10~90% RH
AC INPUT CURRENT (Typ. )
Maximum input current 3.5A at 115VAC, 60Hz or 1.6A at 230VAC, 60Hz with 100% output load.
INRUSH CURRENT (Typ. )
Inrush current is less than 25A at 115VAC or less than 40A at 230VAC under cold start
Conditions. Limiting provided by internal thermistors.
SETUP, RISE TIME
1000ms, 20ms / 230VAC at full load
3000ms, 20ms / 115VAC at full load
HOLD-UP TIME (Typ. )
16ms / 230VAC at full load
16ms / 115VAC at full load
LEAKAGE CURRENT
Leakage current is less than 0.75 mA at 264VAC for earth leakage current
Leakage current is less than 0.25 mA at 264VAC for patient leakage current
DC OUTPUT ADJ. RANGE
DC output voltage (or CH1 of multiple output models) can be adjusted between -5%~+10% rated output voltage by potential meter.
OVERLOAD PROTECTION
Fully protected against short circuit and output overload.
The hiccup type protection will be activated at 120~160% rated load and recovers automatically after fault condition is removed.
OVER VOLTAGE PROTECTION
Provided on output channel 1 only at 115%~135% rated output voltage.
Output will be shut down when this protection is activated.
TEMP. COEFFICIENT
0.04%/ on all outputs at full load between 0~50 of ambient temperature.
VIBRATION
2G of acceleration, vibrating frequency adjust from 10Hz ~500Hz within a
10-minute cycle. 6 testing cycles (60 minutes) each along X, Y, Z axes.
SAFETY STANDARDS
UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE
4000VAC between input and output
1500VAC between input and F. G.
1500VAC between output and F. G.
ISOLATION RESISTANCE
>100M Ohms for I/P-O/P, I/P-FG, O/P-FG by using 500VDC test voltage.
EMI COMPLIANCE
EMI Specifications Compliance Level
Conducted & Radiation EN55011, Class B EN55022, Class B
Harmonic distortion Voltage flicker EN61000-3-2 EN61000-3-3
EMS COMPLIANCE
EMS Specification Compliance Level
ESD air EN61000-4-2, Level 3, 8KV
ESD contact EN61000-4-2, Level 2, 4KV
RF field susceptibility EN61000-4-3, Level 2, 3V/m Level 3, 10V/m
EFT(Electrical Fast Transient)/Burst EN61000-4-4, Level 2, 1KV/5KHz, Level 3, 2KV/5KHz
Lightning/Surge EN61000-4-5, Level 4, 2KV/Line-Line, 4KV/Line-Earth
Conducted RF susceptibility EN61000-4-6, Level 2, 3Vrms/m, Level 3, 10Vrms/m
Magnetic field immunity EN61000-4-8, Level 2, 3A/m, Level 3, 10A/m
Voltage dip, interruption EN61000-4-11, Compliance
Digital phone carrier immunity ENV50204, Level 2, 3V/m,
MTBF
262, 100 hours min. At full load and 25
Calculated per MIL-HDBK-217F.
DIMENSION (L*W*H)
240x78x46mm
PACKING
0.66Kg; 24pcs/16.8Kg/0.99CUFT
