12V17ah AGM Lead Acid Rechargeable Storage Battery (NS12-17)

Factory Appearance real map

Factory floor layout

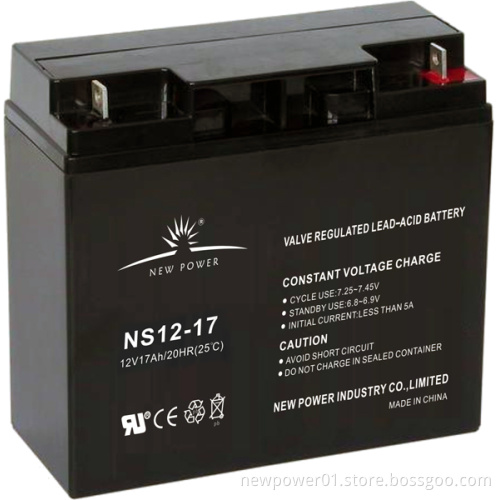

12V17Ah AGM Lead Acid Rechargeable Storage Battery

The AGM battery is widely applied for new energy, telecommunication, banking, medical industry, fire fighting, public safety system and etc.

Specifications
Voltage: 12V
Capacity: 17Ah
Dimensions: 181*77*167mm
Total Height: 167mm
Weight Approx: 5.2kg
Terminal: F3

AGM battery construction:

1. Container/Cover: Made of UL94HB or UL 94VO ABS Plastic.
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. AGM Separator: Import high quality AGM separator.
4. Positive plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Copper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

Applications:

Engine staring, Communication equipment, Fire & Security systems, UPS, Telecommunication systems, Electronic cash registers, Electronics test equipment, Processor based office machines, Control equipment, Electric powered bicycle and wheelchairs, Geophysical equipment, Marine equipment, Medical equipment, Portable cine & video lights, Solar powered systems, Television & video recorders, Vending machines, Alarm system, Power Tools, Emergency lighting systems, Other standby or primary power suppliers.
