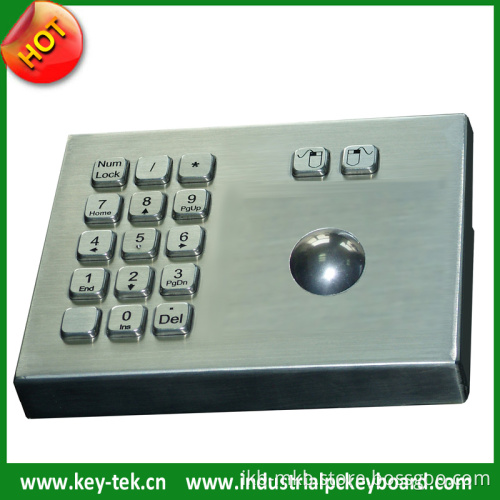

IP65 Stainless Steel Mechanical Trackball with Numeric Keypad

DESCRIPTION: Vandal proof IP65 38mm stainless steel mechanical trackball with integrated numeric keypad, stand alone desk top version with stainless steel housing,
DIMENSIONS: 160.0mm X 125.0mm X 32.0mm (L x W x H)
APPLICATION
This trackball with keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks, ticket vending machines, gas stations, Internet public phones etc.
MAIN FEATURE
Imposing stainless steel design, specially designed trackball with keypad meets the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to degree of protection IP65 from the panel, the keypad is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for operations.
The numeric keypad can be with encryption module supporting DES/TDES for bank usage of CDM/ATM (This is optional).
MECHANICAL DATA
Key: 17 keys, super quality brushed stainless steel
Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
Key Size: 14.0mm X 14.0mm.
Key travel: 2.0mm
Tracker ball: 38mm (1.5') diameter, Resolution 440 edges/revolution.
Black phenolic trackballs are available.
Switch life: More than 3 million of operations.
Actuation Force: 0.6 N+/-0.1N for key 14.0mm X 14.0mm (pressure point) 1.2 N +/-0.1N for key 14.0mm X 28.0mm (pressure point)
Front Plate: Super quality brushed stainless steel
Lettering: Sunk laser legends & characters in high quality ink
Actuator/keys materials: Stainless steel
G. W. 1.20KGs
Dimensions: 160.0mm X 125.0mm (front panel), 140.0mm X 105.0mm (back panel)
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: Appr. 30mA
Supply Voltage: +5V DC +/-5%
Current Rating: Appr. 30mA
EMC Standard: It is compliance with the council IEC 61000-4-2: 2008;
IEC 61000-4-3: 2006+AI: 2007+A2: 2010; IEC 61000-4-4: 2004
EMI: EN 55022: 2010
EMS: EN 55024: 2010
Lifespan: > 5 years
Contact Material: Carbon / Gold
Interface: PS2, RS232, USB available. RS232 for encryption PINPAD option.
OS: All windows, Linux, UNIX, Mac OSX
ENVIRONMENTAL ADAPTABILITY
Operating temperature: -20° C to +60° C
Storage temperature: -30° C to +70° C
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40° C: 21 days, IEC 60512-6
Dry heat test at + 85° C: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK09
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
