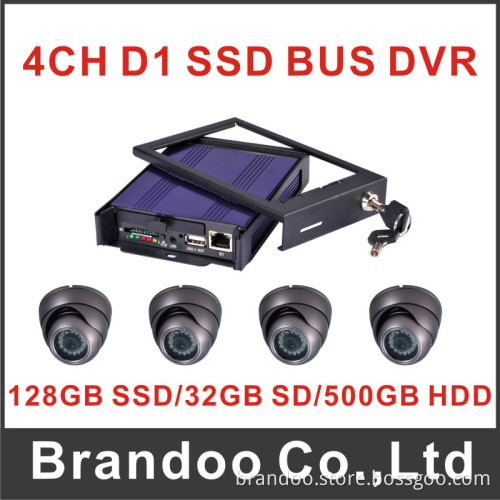

4CH SSD Driver Recorder HD Car DVR + 4 Sony CCD Camera

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Western Union

Product Description

This is a shockproof type SSD memory mobile DVR, 4 channel D1 video quality brings better view of video when vehicles running. Extra GPS function helps track the vehicle driving line.
Features:
>1.8" SSD HDD memory used
>4 channel D1 resolution at 704*576
>8V-32V power supported
>Security code protect DVR operation
>Car ID number settable
>Record status of door opening, turning, breaking and tone

Item	Data	1 channel	2 channel	4 channel
Video	Video input
	Video input standard	1.0V,p-p,75Ω,BNC
	Video output	1.0V,p-p,75Ω,BNC
	TV Mode	PAL/NTSC
	Compression	H.264 High Profile
	Resolution	704x576(PAL)/704x480(NTSC)	1280x512(PAL)/1248x416(NTSC)	1280x1024(PAL)/1248x832(NTSC)
	Recording frame	25f/s(PAL),30f/s(NTSC)	50f/s(PAL),60f/s(NTSC)	100f/s(PAL),120f/s(NTSC)
	Video rate	660Kbps ~ 1.5Mbps,4 level selectable	1.32Mbps ~ 3Mbps,4 level selectable	1.98Mbps ~ 4.5Mbps,4 level selectable
Audio	Audio input	1 channel	2 channel	4 channel
	Audio input standard	20KΩ,RCA
	Audio output	500Ω,RCA
	Audio level	1V ~2V, p-p
	Audio compression	G.711
Storage	Storage media	1.8" SSD HDD,external USB port for flash disk or USB HDD
	Recording format	AVI file
Interface	Sensors	1 speed sensor,1 acc sensor,3 normal sensor etc.
	Com ports	2 RS232 ports,1 RS485 port
	Network	RJ45,10M/100M Ethernet
	GPS	External GPS module(should pay extra).GPS format:NEMA,baud rate 4800bps
Software	Player	customized player to playback record video, and analyse gps data and sensor data
	Other player	Storm player,VLC media player,Winamp(just for video playback)
Power	Power input	DC +8V~+32V
	Power output	DC +12V@1.5A,+5V@1A
	Power	Working power:<5W,Standby:<0.1W. (without camera, HDD and LCD)
Others	Working temp.	-10 ~ +60
	DVR dimension	116mm(L) x 97mm (W) x 26mm(H)
	Bracket dimension	151mm(L) x 103mm(W) x 28mm(H)
