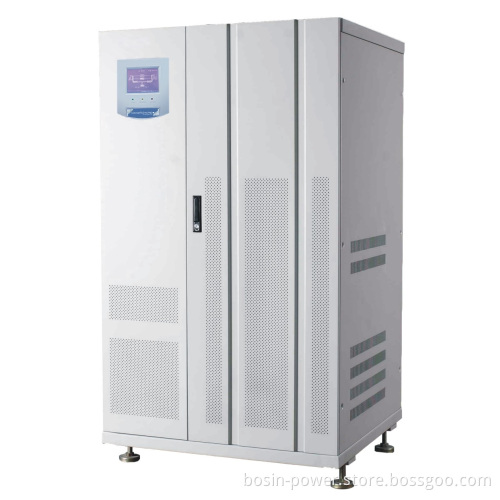

120kw 3 Phase Pure Sine Wave Inverter

BNS 10k - 320kW
3/3 Phase Pure Sine Wave Inverter
BNS transformer based, three phase hybrid solar inverter system is a pure sine wave inverter with isolated transformer. It can combine multiple power sources (such as utility power or a generator) to deliver non-intermittent, reliable and high quality AC power for government, pastorals, hospitals, banks, airports, pastoral areas, boarders, islands, communication base station, industries, etc. With a multi-energy-powered solution. The modular design with flexible configuration brings customers the optimized social, economical and environmental benefits.

Features:
A). Pure sine wave output, true on-line dual conversion design
B). Adopt 4 layer PCB, and SMD technology
C). High efficiency IGBT (insulated gate bipolar transistor) inverter technology
The 6th generation low-exhaust and big-power IGBT with excellent high speed switch feature, high voltage feature and large current feature. Drives by electric voltage, only need small control power. The 6th generation with lower saturation voltage, the inverter has high efficiency, low temperature, high reliability.
D). Touch screen display, with the simple operation and intuitive data, optional display language and logo
E). Set the work mode on the display directly, Inverter mode, UPSmode, ECO mode, EPS mode
F). Intelligent detecting function
This system microprocessor can continuously detect power status online, the breaker status and all the working status of the circuit.
G). Premium load feature
It is completely capable to load from 0-100% while no need to change to bypass, which make sure the output reliable.
H). Cold start function
When mains failure, can directly use the battery to start the UPS until the battery discharge to low voltage, when mains recover, can self start UPS.
I). Intelligent communication
With RS232 and RS485 standard collocation, optional SNMP and dry contact
J). Perfect protection
Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.
K). Selectable battery inspection module
Can test the single parameter and display on the LCD, battery failure will immediately alarm and inform the administrator.
L). High-powered dynamic feature
Adopt kinds of feedback control such as instantaneous control mode and virtual value, not only reach the high dynamic adjustment, but also reduce the output voltage distortion.
M). Optional input harmonic filter or 12 pulse rectifier
Effectively restrain the input THD, raise UPS input power factor and reduce the input THD current.
