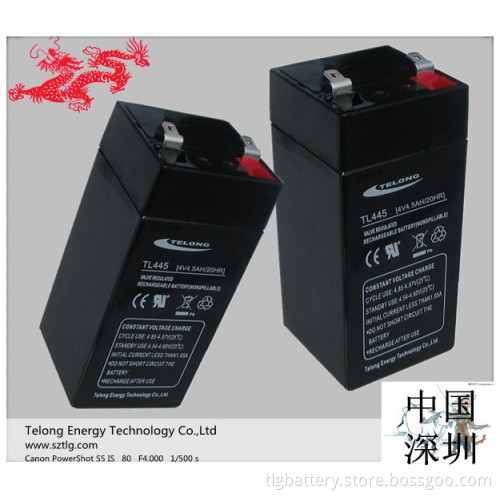

4V LED Lighting Use Battery-Telong 4V4.5ah-Rechargeable Lead Acid Battery

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China(Main Land)
Payment Type:	L/C, T/T, Western Union

Product Description

______________________________________________COMPANGY______________________________________________
Telong Energy Technology
Co.,Ltd
ABOUT US:
Shenzhen Telong Energy Technology Co.,LTD was founded in 2005, Specialized in
researching,developing,producing and sales of lead acid battery, lithium battery and
Gel battery. Its worldwide sales network already covers more than 100 countries and
regions, and has a good cooperation partnership with several excellent operators.
PRODUCTS:
General AGM Lead Acid Battery (2v, 4v, 6v, 12v, 24v)
Deep Cycle Service AGM Battery (6v, 12v)
Front Access Terminal AGM Battery (12v)
GEL AGM Battery (2v, 12v)
OPzV,OPzS Tubular Gel Battery (2v, 12v)
Automotive batteries, Motorcycle batteries, Golf car batteries,etc.
____________________________________________TL435(4v3.5ah)_____________________________________________
BATTERY CONSTRUCTION

Component	Positive Plate	Negative Plate	Container
Raw material	Lead dioxide	lead	ABS

Cover	Safety valve	Terminal	Separator	Electrolyte
ABS	Rubber	Copper	Fiberglass	Sulfuric acid

SPECIFICATION

Nominal Voltage		4V
Rated capacity (20 hour rate)		3.5 Ah
Dimension	Length	47mm (1.83 inches)
	Width	47mm (1.83inches)
	Height	100mm (3.90inches)
Weight Approx		0.50Kg(1.10Ibs)

________________________________________________FEATURE__________________________________________________
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-
dom from electrolyte maintenance or water adding.
2).Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
3).UL-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications. Maintenance-free operation.
7).Low self discharge. Long Life Design
8).Wide Operation Temperature Range
9).Available in flame retardant ABS material for the battery case V0
___________________________________________CHARACTERISTICS___________________________________________

Capacity		20 hour rate(0.225A )	4.5AH
25'C (77'C)		10 hour rate(0.419A )	4.19AH
		1 hour rate(2.65A )	2.65 AH
Internal Resistance		Full charged Battery at 25 'C(77'F )	15 milli-ohm
Capacity affected by Temp		40'C (104F)	102%
		25'C (77'F)	100%
		0'C (32'F)	85%
		(-15'C )5'F	65%
Self-Discharge		Capacity after 3 month storage	91%
25'C (77'F)		Capacity after 6 month storage	82%
		Capacity after 12 month storage	64%
Terminal		F1
Charge	Cycle	Initial Charging Current less than 1.35A
(Constant Voltage)		Voltage 4.8-5.0V
	Float	Voltage4.5-4.6 V

____________________________________________APPLICATIONS____________________________________________
UPS
Electric TOys
Electric Tools
Emergency Lighting
Alarm system
Electric Power Supply
Communication Power Supply
DC power Supply
Other standby or primary power supplies.
________________________________________________CATALOG_____________________________________________

No.	Model No.	Rated Voltage (V)	Rated Capacity (AH)	Form Factor(mm)			terminal	Weight ±4%(Kg)
				L	W	H	terminal	Weight ±4%(Kg)
				mm	mm	mm	Type	Kg
1	TL430	4	3	90	34	66	F1/F2	0.45
2	TL435	4	3.5	90	34	66	F1/F2	0.45
3	TL445	4	4.5	47	47	100	F1/F2	0.5
4	TL460	4	6	47	47	100	F1/F2	0.55
5	TL612	6	1.2	98	25	56	F1	0.3
6	TL623	6	2.3	43	37	76	F1	0.33
7	TL628	6	2.8	66	33	100	T1	0.55
8	TL632	6	3.2	134	34	67	T1	0.65
9	TL630	6	3	70	47	100	T1	0.63
10	TL635	6	3.5	70	47	100	T1	0.67
11	TL640	6	4	70	47	100	T1/T8	0.67
12	TL645	6	4.5	70	47	100	F1	0.73
13	TL650	6	5	70	47	100	F1/F2	0.73
14	TL660	6	6	70	47	100	F1/F2	0.82
15	TL670	6	7	151	34	100	F1/F2	1.16
16	TL680	6	8	151	34	100	F1/F2	1.16
17	TL6100	6	10	151	50	100	F1/F2	1.55
18	TL6120	6	12	151	50	100	F1/F2	1.65
