4V Electric Tool / Toy Battery-Telong 4V6ah-Lead Acid Battery

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China(Main Land)
Payment Type:	L/C, T/T, Western Union

Product Description

________________________________________________COMPANGY________________________________________________
Telong Energy Technology
Co.,Ltd
ABOUT US:
Shenzhen Telong Energy Technology Co.,LTD was founded in 2005, Specialized in
researching,developing,producing and sales of lead acid battery, lithium battery and
Gel battery. Its worldwide sales network already covers more than 100 countries and
regions, and has a good cooperation partnership with several excellent operators.
PRODUCTS:
General AGM Lead Acid Battery (2v, 4v, 6v, 12v, 24v)
Deep Cycle Service AGM Battery (6v, 12v)
Front Access Terminal AGM Battery (12v)
GEL AGM Battery (2v, 12v)
OPzV,OPzS Tubular Gel Battery (2v, 12v)
Automotive batteries, Motorcycle batteries, Golf car batteries,etc.

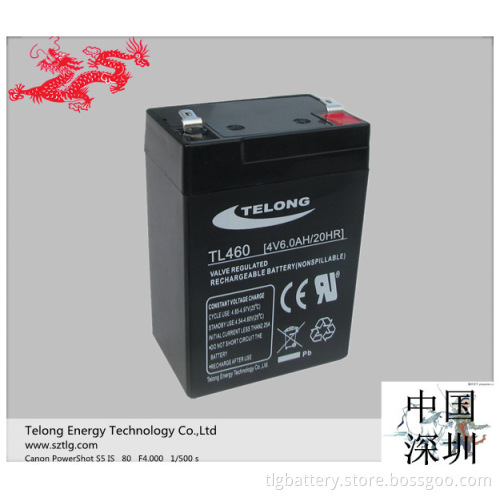

______________________________________________TL460(4v6ah)__________________________________________________

1.Specifications
Nominal Voltage		4V
Rated capacity (20 hour rate)		6.0 Ah
Dimension	Total Height	107mm (4.26 inches)
	Height	101mm (3.98 inches)
	Length	70mm (2.76 inches)
	Width	47mm (1.85inches)
Weight Approx		0.65Kg

2.Characteristics
Capacity 25'C (77'C)		20 hour rate(0.30A 3.6V)	6.00 AH
		10 hour rate(0.558A 3.6V)	5.58AH
		5 hour rate(1.02A 3.5V)	5.10 AH
		1 hour rate(3.77A 3.2V)	3.77 AH
Internal Resistance		Full charged Battery at 25 (77 )	16 milli-ohm
Capacity affected by Temp		40'C (104F)	102%
		25'C (77'F)	100%
		0'C (32'F)	85%
		(-15'C )5'F	65%
Self-Discharge 25'C (77'F)		Capacity after 3 month storage	91%
		Capacity after 6 month storage	82%
		Capacity after 12 month storage	64%
Terminal		F1
Charge (Constant Voltage)	Cycle	Initial Charging Current less than 1.8A
		Voltage 4.8-4.9 V
	Float	Voltage 4.5-4.6 V

3.Features & Benefits Using oxygen recombination technology: maintenance-free; Pb-Ca-Sn alloy for plate grids: less gassing and less self-discharging; High quality AGM separator: extend cycle life and prevents micro short circuit; ABS material: increases the strength of battery container. (Flame-retardant ABS is optional); High purity raw material: ensures low self discharge rate; Silver-coated copper terminals, brass insert terminals and lead terminals improve the electric conductivity;

4.Applications Fire & security systems; Uninterruptible power supplies; Telecommunication systems; Electronic test equipment; Television& video recorders; Alarm Systems, Power Tools; Emergency Lighting Systems; Toys; Other standby or primary power supplies.

___________________________________________________CATALOG__________________________________________________

Battery Type	Nominal Voltaage (V)	NominalCapacity (Ah)	Dimension				Weight	Terminal Type
			Length	Width	Height	Total Height	Weight
			mm	mm	mm	mm	kg
TL428	4	2.8	60	28	82	85	0.29	F1
TL435A	4	3.5	48	48	102	108	0.42	F1
TL435B	4	3.5	91	34	60	66	0.4	F1
TL445A	4	4.5	48	48	102	108	0.52	F1
TL445B	4	4.5	48	52	94	99	0.52	F1
TL455	4	4.5	48	48	102	108	0.64	F1
TL465	4	6.5	70	47	101	107	0.65	F1
TL475	4	7.5	70	47	101	107	0.72	F1
TL485	4	8.5	70	47	101	107	0.75	F1
TL495	4	9.5	70	47	101	107	0.82	F1
TL4100	4	10	102	44	95	101	1.1	F1
TL4200	4	20	149	43	154	159	2.1	F2
