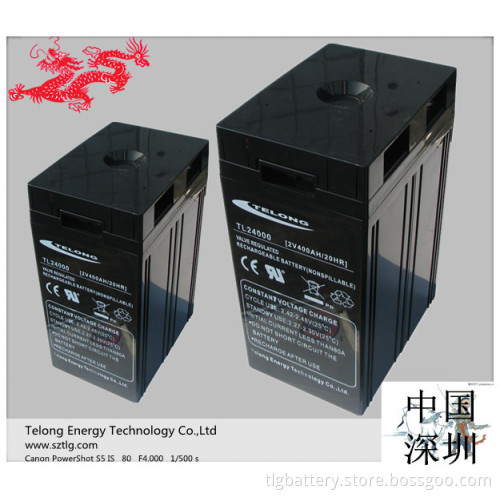

2V Telecom Battery-Telong 2V400ah-Maintenance-Free Lead-Acid Battery

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China(Main Land)
Payment Type:	L/C, T/T, Western Union

Product Description

______________________________________________COMPANGY______________________________________________
Telong Energy Technology
Co.,Ltd
ABOUT US:
Shenzhen Telong Energy Technology Co.,LTD was founded in 2005, Specialized in
researching,developing,producing and sales of lead acid battery, lithium battery and
Gel battery. Its worldwide sales network already covers more than 100 countries and
regions, and has a good cooperation partnership with several excellent operators.
PRODUCTS:
General AGM Lead Acid Battery (2v, 4v, 6v, 12v, 24v)
Deep Cycle Service AGM Battery (6v, 12v)
Front Access Terminal AGM Battery (12v)
GEL AGM Battery (2v, 12v)
OPzV,OPzS Tubular Gel Battery (2v, 12v)
Automotive batteries, Motorcycle batteries, Golf car batteries,etc.
___________________________________________TL24000(2v400ah)_____________________________________________
BATTERY CONSTRUCTION

Component	Positive Plate	Negative Plate	Container
Raw material	Lead dioxide	lead	ABS

Cover	Safety valve	Terminal	Separator	Electrolyte
ABS	Rubber	Copper	Fiberglass	Sulfuric acid

SPECIFICATION

Nominal Voltage		2V
Rated capacity (0 hour rate)		400 Ah
Dimension	Length	210mm (8.19 inches)
	Width	176mm (6.86inches)
	Height	330mm (12.87inches)
Weight Approx		28.0Kg(61.74bs)

________________________________________________FEATURE_______________________________________________
1).Absorbent Glass Mat(AGM) technology for efficient gas recombination of up to 99%and free-
dom from electrolyte maintenance or water adding.
2).Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
3).UL-recognized component.
4).Valve Regulated Construction .Can be mounted in any orientation.
5).Computer designed lead, calcium tin alloy grid for high power density.
6).Long service life, float or cyclic applications. Maintenance-free operation.
7).Low self discharge. Long Life Design
8).Wide Operation Temperature Range
9).Available in flame retardant ABS material for the battery case V0
___________________________________________CHARACTERISTICS____________________________________________

Capacity 25'C (77'C)		10 hour rate(40A )	400AH
		5 hour rate(64A )	320AH
		1 hour rate(240A )	240 AH
Internal Resistance		Full charged Battery at 25 'C(77'F )	0.40milli-ohm
Capacity affected by Temp		40'C (104F)	102%
		25'C (77'F)	100%
		0'C (32'F)	85%
		(-15'C )5'F	65%
Self-Discharge 25'C (77'F)		Capacity after 3 month storage	91%
		Capacity after 6 month storage	82%
		Capacity after 12 month storage	64%
Terminal		T20
Charge (Constant Voltage)	Cycle	Initial Charging Current less than 160A
		Voltage 2.35-2.40V
	Float	Voltage 2.25-2.30 V

____________________________________________APPLICATIONS______________________________________________
UPS
Electric Power Supply
Communication Power Supply
DC power Supply
Marine quipment
Control equipment Fire and security systems
Telecommunication systems
Other standby or primary power supplies.
________________________________________________CATALOG_______________________________________________

Model	Nominal Voltage (V)	Rated Capacity (Ah)	Dimension				Weight	Terminal
			L	W	H	Total Hight	Weight
			mm	mm	mm	mm	kg
TEL50-2	2	50	160	49	166	166	3	F13
TEL100-2	2	100	171	72	206	211	6	F10
TEL150-2	2	150	172	102	205	227	8	F10
TEL200-2	2	200	173	111	330	364	13.5	F10
TEL250-2	2	250	173	111	330	364	15.5	F10
TEL300-2	2	300	171	151	330	364	18.5	F10
TEL350-2	2	350	171	151	330	364	20.5	F10
TEL450-2	2	450	210	176	330	367	28	F10
TEL500-2	2	500	241	175	330	365	32	F10
TEL600-2	2	600	302	175	330	367	37	F10
TEL700-2	2	700	302	175	330	367	40	F10
TEL800-2	2	800	410	175	330	367	52	F10
TEL1000- 2	2	1000	475	175	330	367	62	F10
TEL1200-2	2	1200	475	175	330	367	71	F10
TEL1500-2	2	1500	400	350	345	382	94	F10
TEL2000-2	2	2000	490	350	345	382	123	F10
TEL2500-2	2	2500	490	350	345	382	140	F10
TEL3000-2	2	3000	710	350	345	382	190	F10
TEL3500-2	2	3500	710	350	345	382	205	F10
TEL4000-2	2	4000	710	350	345	382	228	F10
