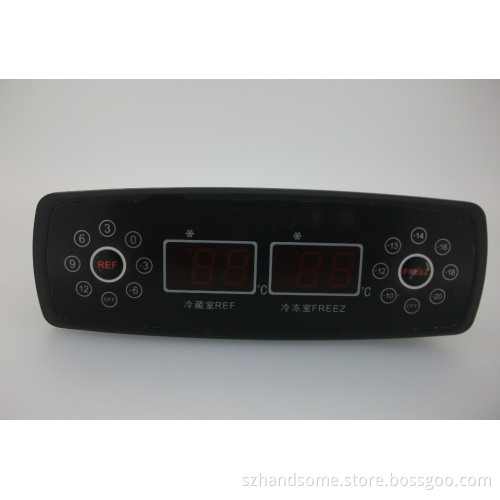

R12F12 Digital Thermostat for Kitchen Cabinet

Digital Thermostat for Kitchen Cabinet R12F12Measuring and Controlling the temperature of cold storage/cold frozen. Widely used for kitchen cabinet, and some place which need double -temperature/ double-controlling.1. General DescriptionTemperature controllers could measure and control dual-way temperature (refrigerating and freezing cabinets), and has the functions of compressor start-up delay protection, code display when sensor failure. They are very easy to operate.2. Technical parametersTemperature measuring range: -40° C~70° CResolution: 1° C3 Accuracy: -40° C~50° C, ± 1° C, 50° C~70° C, ± 2° CPower supply: 230VAC± 10%, 50/60HzPower consumption: <5WRelay output for refrigerating: 30A/240VAC, max compressor loading 1.5HP/240VACRelay output for freezing: 30A/240VAC, max compressor loading 1.5HP/240VACProduct size: 180mm× 60.14mm× 84.2mmMounting size: 157mm× 39mmOperation temperature: -10° C~50° CStorage temperature: -25° C~75° CStorage humidity: 20%~85%(non-condensing)
