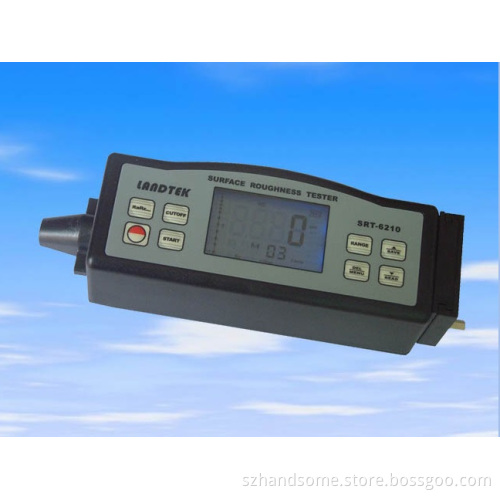

SRT-6210 4 Parameters Surface Roughness Tester (Ra, Rz, Rq, Rt)

4 Parameters Surface Roughness Tester (Ra, Rz, Rq, Rt)

Measuring Range
Ra, Rq: 0.005-16.00um/0.020-629.9uinch
Rz, Rt: 0.020-160.0um/0.780-6299uinch
Accuracy: ≤±10%
Fluctuation of display value: Not more than 6%
Sensor:
Test Principle: Inductance type
Radius of Probe Pin: 5um
Material of Probe Pin: Diamond
Dynamo-measurement of Probe: 4mN(0.4gf)
Probe Angle: 90°
Vertical Radius of Guiding Head: 48mm
Maximum driving stroke: 17.5mm/0.7inch
Cutoff length (l): 0.25mm / 0.8mm / 2.5mm optional
Evaluation length: 5L
Driving speed:
Sampling length = 0.25mm Vt=0.135mm/s
Sampling length = 0.8mm Vt=0.5mm/s
Sampling length = 2.5mm Vt=1mm/s
Returning Vt=1mm/s
Profile digital filter
Filtered Profile: RC
Filtered Profile: PC-RC
Filtered Profile: Gauss
Non-Filtered Profile: D-P
Resolution: . 001μm if reading <10μm
0.01μm if 10μm≤reading<100μm
0.1μm if reading ≥100μm
Evaluation length: 5 cut-off
Power Li-ion battery: Rechargeable
Operating conditions: Temp. 0~50C
Humidity <80%
Size: 140X57X48 mm (5.5X2.2X1.9 inch)
Weight: About 420 g
