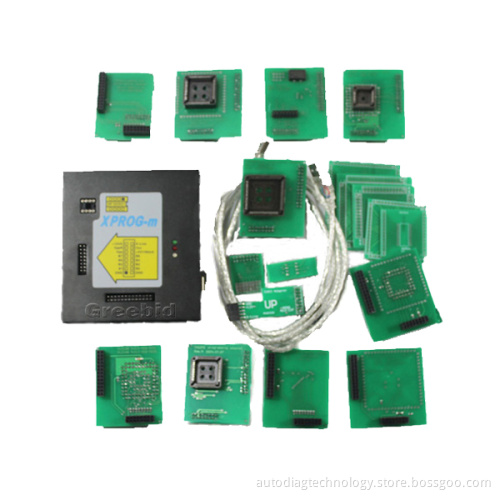

X-Prog M Programmer V5.0

The XPROG-m programmer is designed to replace the earlier version of XPROG programmer. XPROG-m programmer is fully upward-compatible hardware with XPROG programmer and have many additional features.The XPROG-m supports in-circuit and on-board programming of Motorola 68HC05, 68HC08, 68HC11, 68HC(S)12 family MCU's, Texas Instruments TMS370/TMS374 family MCU's and serial EEPROM's.All supported devices are divided into "Software authorization" licenses. You can obtain authorization license only for these devices you are interested in."Software authorization" licenses:Motorola HC05 MCU's family authorization.Motorola HC08 MCU's family authorization.Motorola HC11 MCU's family authorization.Motorola HC(S)12 MCU's family authorization.Motorola HC05B/X family "Expert Option" authorization (bypass the security bit for reading).SGS-Thomson M35080 EEPROM "Expert option" authorization (can erase full device)Texas Instruments TMS370 MCU's family authorization. Now supports TMS374 MCU! ! !Functional features:Fully compatible with all software versions of " Device Programmer Desktop"Software update (ATMEGA) - directly from "Device Programmer Desktop"Software version control mechanismSelf check for error handlingHigh speed RS232 communication interface, fully compatible with USB to RS232 adapterFully upward-compatible XPROG connectorMulti functional XPROG-m connector8 pin DIP socket for on- board programmingSupports many PLCC, QFP, LQFP adapters for on- board programmingHigh speed hardware engine (PLD)Hardware Specifications:Include high output current MPU.External output for on-board device programming.Serial port interface (up to 115K baud) works on (COM1, COM 2, COM3 or COM4).Electrical Requirements:Operating Voltage: 15V DC. The external power supply unit is neededPower Consumption: 300 mA.System Requirements for PC:Processor: INTEL Pentium 60MHz or faster (depends on operating system)Memory: (RAM) 32MB (depends on operating system)Hard drive: 5MB free spaceCommunication: One free physical COM-port (or USB to RS232/COM adapter)Operating system: Microsoft Windows 95/ 98(recommended)/ NT/ ME/ 2000/ XPSupported Device:Serial Eprom:24Cxx, 25Cxx, 93Cxx, MDA2062, NVM3060, M6M800xx, S2100, S24Hxx, TC89xxx, X2444, M35080TEXAS INSTRUMENTS TMS370 Series:TMS370C002A, TMS370C010A, TMS370C012A, TMS370C020A, TMS370C022A, TMS370C032A,TEXAS INSTRUMENTS TMS374 Series:TMS374C003APQQ, TMS374CD13APQQMOTOROLA MC68HC05 Series:MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC05B32, MC68HC05X32(0D53J
