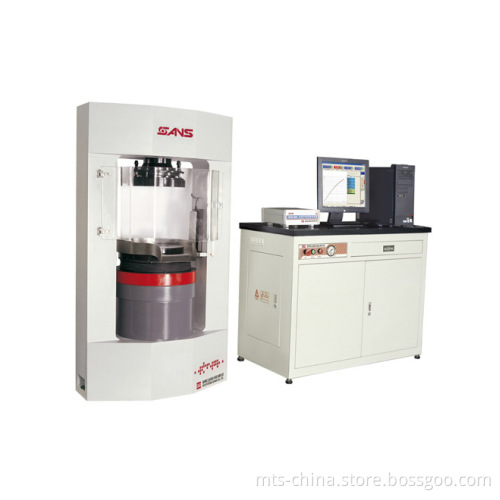

Yaw4000 Hydraulic Compression Testing Machine

YAW4000 Series Compression Testing Machine is designed for high capacity compression testing of concrete, cement, rocks, elastomer etc. The system is available in a high-stiffness with 2 or 4 columns and has a force capacity ranging from 300kN to 3000kN. With servo valve to control the loading, the machine is able to carry out digital closed loop control for load. Features: 1. High stiffness frame structure permits consecutive testing of specimens2. Low noise and vibration offer a comfortable testing environment. 3. Transparent polycarbonate guard ensures operator's safety and makes it easy to observe the test process. 4. Appropriate working height and ergonomic controls improve operator efficiency. 5. Load measurement resolution: 1/300000 of capacity, no steps in full loading range and keeping unchanged6. High-resolution, digital DSP-based control system7. High speed (12MB/s) on data exchange with a USB communication8. Automatic and efficient to set up test parameters according to test standards
