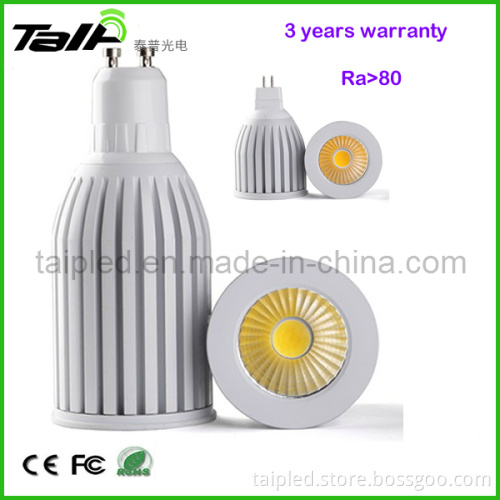

2013 New Design 5W GU10 COB LED Spotlight

1. Product name: 5W GU10 COB LED spotlight
2. Size: Dia50xH80mm
3. Material: AL + tempered glass
4. Light source: 1PC High power 5W COB LED (Bridgelux, Epistar & SHARP available)
5. Inut voltage: AC85-265V
6. Driver: Top quality (UL / CE) or normal type, PF>90
7. Color index: Ra80-90
8.LED chip quantiy:25pcs
9. Lum output: 80-90lm/w
10. Beam angle: 35 degree
11. IP rank: IP20
12. Warranty: 3 year warranty (according to driver and chip used)
13. CE & RoHS

Packing / Weight:

holder pack+EPE+box+carton+combination board
1.Qty/ctn:200pcs
2.Gross Weight: 17Kg
3.Size of carton:52*26*38CM

Features
1. Energy-saving__saving 70%-80% energy compared with traditional Fluorescent tube.
2. Adopt the super LED chips which have high lumen and low light loss, light loss is less than 5% during 3000 hours.
3. Environmental-friendly- NO UV & infrared and other radiation, & vibration resistant
4. Long life-span__more than 50 000 hours,
5. Minimum maintenance required.

Application:
Replacement bulbs for traditional halogen lampes and spotlight, especially for museums, art galleries, cosmetic, counters where UV and IR radiation is undesirable.
This suitable for products range of DIY store, hardware store, light store, supermarket, hotels, bars, restaurants, coffee shops, electronic store, catalogue marketing, internet shop and some project contract

1,Light Body:

Adopt high quality 6060 aviation aluminum, with excellent ability anti-stress,anti-corrosion,good resistance to external cracking, after anodized never discoloration.

2, New designed MR16/GU10/E27/E14 reflector
Alike the traditional spotlight with reflector,greatly improved the light efficiency and through the refraction of light to reduced the loss of light,beautiful appearance.

3, High-intensity aluminium for good heat sinking
Adopt integrated high-intensity aluminum heat sink,with perfectly heat dissipation,ensured the long lifespan.

4, COB LED
Adopt SHARP COB LED (or Epistar LED chip) with super heat dissipation,high light effect(>110LM/W),high CRI(>80Ra),Ceramic for heat dissipation is much better then PCB,longer life span.

5,Power Supply
Isolated constant current driver with high efficiency and PF(>0.9),wide operating coltage range. Each Driving system has passed high temperature test (60 degree centigrade).


Aging Test

 b. we sure to give you the most  favorable prices.

 c. we provide 3 years warranty.

 d. we have long-term cooperation with our forwarder, so we can provide you the lowest freight cost and the fastest service.

 e. we have professional engineers to design and develop new led lights according to your requirements.
