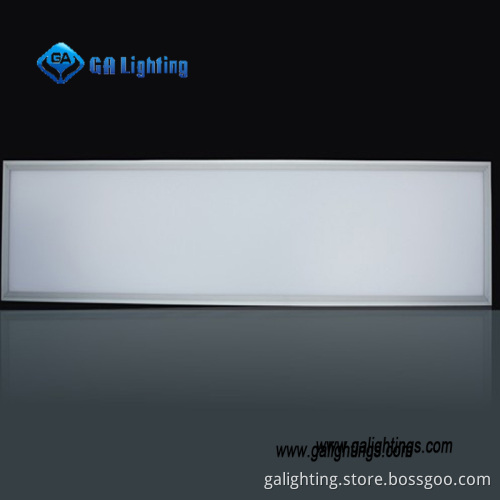

300x1200mm 1' X4' SMD LED Ceiling Panel Light

Get Latest Price

Payment Type:: L/C, T/T, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Paypal

Product Description

300x1200mm 1' X4' SMD LED Ceiling Panel Light1. Power: 40W2. Size: 295x1195x12mm3. Package: 1290x340x55mm4. Net Weight: 5KG/PCS5. Gross Weight: 5.5KG/PCS6. Lumen(white): 3300± 10% lm7. Voltage: AC85-265V, DC 24V8. Color: White, red, green, blue, yellow9. Frequency: 50/60Hz10. Material: Aluminium + PMMA11. Life span: 50, 000 hour12. Power factor: >0.913. CRI: 75-80ra14. Certification: CE RoHS PSE SGS15. Warranty: 2 yearsApplication:Office, Meeting Room, Factories, Commerical useResidential, Institutuinal buildingsPlaces where high color rendering index lighting is needed

SMD LED Panel Product Information
SMD LED Panel Product Information
Item No.	Specifications
Item No.	Specifications
GA-PL300x300 ( light at four sides)	1. Wattage:22W	9. Power Factor: >0.95
	2.Size:295x295x12mm	10. Life Span: 50,000hours
	3. LED: 96pcs (Sumsung HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage:85-265VAC	12. Operatig temp.: -20-+60degree
	5. Working Voltage:24VDC	13. Storage temp.:-40-+85degree
	6. Luminous flux: 1800±10% lm	14. Net Weight: 2KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 2.3KG/pcs
	8. Colour rendering index: 75	16. Package: 380x330x55mm

GA-PL300x600 ( light at four sides )	1. Wattage:22W	9. Power Factor: >0.95
	2.Size:295x595x12mm	10.Life Span: 50,000hours
	3. LED: 96pcs (Sumsung HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage:85-265VAC	12. Operatig temp.: -20-+60degree
	5. Working Voltage:24VDC	13. Storage temp.: -40-+85degree
	6. Luminous flux: 1800±10% lm	14. Net Weight: 2.7KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 3KG/pcs
	8. Colour rendering index: 75	16. Package:690x330x55mm

GA-PL600x600 ( light at four sides)	1. Wattage:40W	9. Power Factor: >0.95
	2.Size:595x595x12mm	10. Life Span: 50,000hours
	3. LED: 192pcs (Sumsung HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage:85-265VAC	12. Operatig temp.: -20-+60degree
	5. Working Voltage:24VDC	13. Storage temp.:-40-+85degree
	6. Luminous flux: 3600±10% lm	14. Net Weight: 5KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 6KG/pcs
	8. Colour rendering index: 75	16. Package: 690x640x55mm


GAPL-300x1200 ( light at four sides )	1. Wattage:40W	9. Power Factor: >0.95
	2.Size:295x1195x12mm	10.Life Span: 50,000hours
	3. LED: 192pcs (Sumsung HB SMD)	11. CCT: WW; NW; CW
	4. Input Voltage:85-265VAC	12. Operatig temp.: -20-+60degree
	5. Working Voltage:24VDC	13. Storage temp.: -40-+85degree
	6. Luminous flux: 3300±10% lm	14. Net Weight: 5KG/pcs
	7. Material: Aliminium + PMMA	15. Gross Weight: 5.5KG/pcs
	8. Colour rendering index: 75	16. Package:1290x340x55mm
