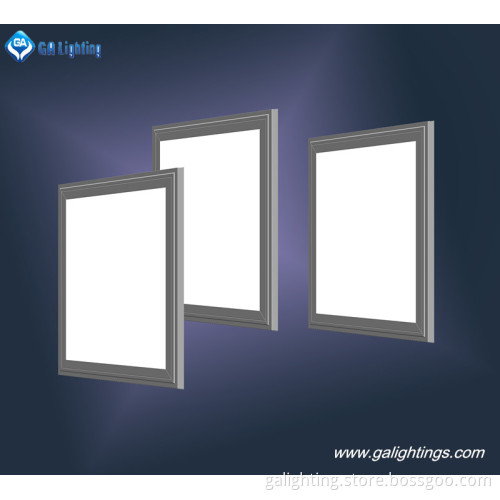

European Standards 230V Warm White Flat Sqaure LED Panel (GA-PL600X600)
- Payment Type:
- L/C, T/T, Paypal
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Shenzhen, Guangdong, China |
---|---|
Payment Type: | L/C, T/T, Paypal |
Product Description
Product Description
Product Description
European Standards Warm White LED Panel (GA-PL600x600)
Specification:
1. Wattage: 40W
2. Size: 595x595x12mm
3. LED: SMD3022 LumenMax
4. Input Voltage: 85-265VAC
5. Working Voltage: 24VDC
6. Luminous flux: 3600± 10% lm
7. Material: Aluminium + PMMA
8. Colour rendering index: 75
9. Power Factor: >0.95
10. Life Span: 50, 000hours
11. CCT: WW; NW; CW
12. Operatig temp.: -20-+60
13. Storage temp.: -40-+85
14. Net Weight: 5KG/PCS
15. Gross Weight: 6KG/PCS
16. Package: 690x640x55mm
17. Emitting color: White, Red, Green, Blue
Product Features:
Special beam angle and lighting design, internal high efficient constant
Current driver, low brightness degradation
Lifespan is as long as 50, 000 hours, can well replace the traditional down light
Green lighting: No strobe, instant on, no damage with frequent on and off
Saves up to 90% energy compared with traditional down light
Circuit design: Constant current, isolated circuit design, the application of wide voltage and frequency
Small volume and high PF
Easy to wall installation or suspension installation (install accessories is assorted, like chain, frame, hook and more)


Applications:
Hotels, Conference, Meeting rooms
Factories & Offices
Commercial Purposes
Residential/institution Buildings
Schools, Colleges & Universities, Hospitals
Other lighting use
Attention:
Please always use the light out of its package.
Before starting use of the light, please check if the light was damaged during transportation, if any damage shown, please DO not install or use it.
Any maintenance should be performed by trained professionals only.
Don't cover the light by other objects
Terms:
Payment: T/T, Paypal
Your mails will be replied ASAP during 24hours.
Lead time: 10-15workdays after received your payment.
Delivery method: DHL/ FedEx/ UPS express, Sea or air shipping for your choice
Delivery Port: Shenzhen/HongKong, China
Promise: To settle any quality problems during 2years warranty.
Discounts: Provide reasonable discount for larger quantity.
Your logo on our products is welcome.
Specification:
1. Wattage: 40W
2. Size: 595x595x12mm
3. LED: SMD3022 LumenMax
4. Input Voltage: 85-265VAC
5. Working Voltage: 24VDC
6. Luminous flux: 3600± 10% lm
7. Material: Aluminium + PMMA
8. Colour rendering index: 75
9. Power Factor: >0.95
10. Life Span: 50, 000hours
11. CCT: WW; NW; CW
12. Operatig temp.: -20-+60
13. Storage temp.: -40-+85
14. Net Weight: 5KG/PCS
15. Gross Weight: 6KG/PCS
16. Package: 690x640x55mm
17. Emitting color: White, Red, Green, Blue
Product Features:
Special beam angle and lighting design, internal high efficient constant
Current driver, low brightness degradation
Lifespan is as long as 50, 000 hours, can well replace the traditional down light
Green lighting: No strobe, instant on, no damage with frequent on and off
Saves up to 90% energy compared with traditional down light
Circuit design: Constant current, isolated circuit design, the application of wide voltage and frequency
Small volume and high PF
Easy to wall installation or suspension installation (install accessories is assorted, like chain, frame, hook and more)


Applications:
Hotels, Conference, Meeting rooms
Factories & Offices
Commercial Purposes
Residential/institution Buildings
Schools, Colleges & Universities, Hospitals
Other lighting use
Attention:
Please always use the light out of its package.
Before starting use of the light, please check if the light was damaged during transportation, if any damage shown, please DO not install or use it.
Any maintenance should be performed by trained professionals only.
Don't cover the light by other objects
Terms:
Payment: T/T, Paypal
Your mails will be replied ASAP during 24hours.
Lead time: 10-15workdays after received your payment.
Delivery method: DHL/ FedEx/ UPS express, Sea or air shipping for your choice
Delivery Port: Shenzhen/HongKong, China
Promise: To settle any quality problems during 2years warranty.
Discounts: Provide reasonable discount for larger quantity.
Your logo on our products is welcome.
Square LED Panel Light(FOBshenzhen) | ||
Item No. | Specifications | |
GA-PL300x300 | 1. Wattage: 20-22W | 9. Power Factor: > 0.95 |
2. Size: 295x295x12mm | 10. Life Span: 50, 000hours | |
3. LED: 100pcs SMD3022 LumenMax | 11. CCT: WW; NW; CW | |
4. Input Voltage: 85-265VAC | 12. Operating temp.: -20-+60degree | |
5. Working Voltage: 24VDC | 13. Storage temp.: -40-+85degree | |
6. Luminous flux: 1760± 10% lm | 14. Net Weight: 2KG/pcs | |
7. Material: Aliminium + PMMA | 15. Gross Weight: 2.3KG/pcs | |
8. Colour rendering index: 75 | 16. Package: 380x330x55mm | |
GA-PL300x600 | 1. Wattage: 20-22W | 9. Power Factor: > 0.95 |
2. Size: 295x595x12mm | 10. Life Span: 50, 000hours | |
3. LED: 100pcs SMD3022 LumenMax | 11. CCT: WW; NW; CW | |
4. Input Voltage: 85-265VAC | 12. Operating temp.: -20-+60degree | |
5. Working Voltage: 24VDC | 13. Storage temp.: -40-+85degree | |
6. Luminous flux: 1760± 10% lm | 14. Net Weight: 2.7KG/pcs | |
7. Material: Aliminium + PMMA | 15. Gross Weight: 3KG/pcs | |
8. Colour rendering index: 75 | 16. Package: 690x330x55mm | |
GAPL-300x1200 | 1. Wattage: 40W | 9. Power Factor: > 0.95 |
2. Size: 295x1195x12mm | 10. Life Span: 50, 000hours | |
3. LED: 200pcs SMD3022 LumenMax | 11. CCT: WW; NW; CW | |
4. Input Voltage: 85-265VAC | 12. Operating temp.: -20-+60degree | |
5. Working Voltage: 24VDC | 13. Storage temp.: -40-+85degree | |
6. Luminous flux: 3200± 10% lm | 14. Net Weight: 5KG/pcs | |
7. Material: Aliminium + PMMA | 15. Gross Weight: 5.5KG/pcs | |
8. Colour rendering index: 75 | 16. Package: 1290x340x55mm | |
GA-PL600x600 | 1. Wattage: 40W | 9. Power Factor: > 0.95 |
2. Size: 595x595x12mm | 10. Life Span: 50, 000hours | |
3. LED: 200pcs SMD3022 LumenMax | 11. CCT: WW; NW; CW | |
4. Input Voltage: 85-265VAC | 12. Operating temp.: -20-+60degree | |
5. Working Voltage: 24VDC | 13. Storage temp.: -40-+85degree | |
6. Luminous flux: 3200± 10% lm | 14. Net Weight: 5KG/pcs | |
7. Material: Aliminium + PMMA | 15. Gross Weight: 6KG/pcs | |
8. Colour rendering index: 75 | 16. Package: 690x640x55mm | |
GAPL-145x1200 | 1. Wattage: 20W | 9. Power Factor: > 0.95 |
2. Size: 295x1195x12mm | 10. Life Span: 50, 000hours | |
3. LED: 200pcs SMD3014 LumenMax | 11. CCT: WW; NW; CW | |
4. Input Voltage: 85-265VAC | 12. Operating temp.: -20-+60degree | |
5. Working Voltage: 24VDC | 13. Storage temp.: -40-+85degree | |
6. Luminous flux: 1600± 10% lm | 14. Net Weight: 5KG/pcs | |
7. Material: Aliminium + PMMA | 15. Gross Weight: 5.5KG/pcs | |
8. Colour rendering index: 75 | 16. Package: 1290x185x55mm | |
GAPL-600x1200 | 1. Wattage: 80W | 9. Power Factor: > 0.95 |
2. Size: 595x1195x12mm | 10. Life Span: 50, 000hours | |
3. LED: 400pcs SMD3022 LumenMax | 11. CCT: WW; NW; CW | |
4. Input Voltage: 85-265VAC | 12. Operating temp.: -20-+60degree | |
5. Working Voltage: 24VDC | 13. Storage temp.: -40-+85degree | |
6. Luminous flux: 6400± 10% lm | 14. Net Weight: 5.4KG/pcs | |
7. Material: Aliminium + PMMA | 15. Gross Weight: 6KG/pcs | |
8. Colour rendering index: 75 | 16. Package: 1290x690x55mm |
