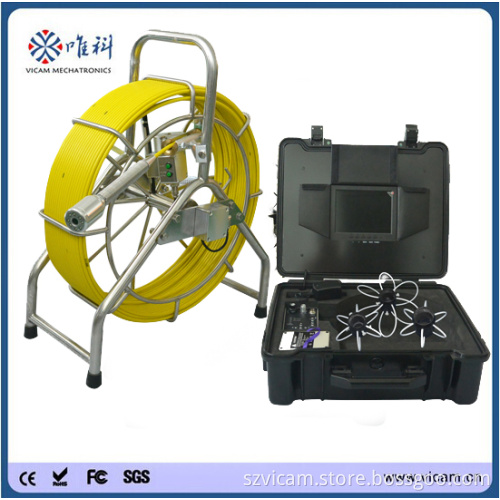

8" Color Monitor 60m Underground Drain Pipe Inspecion Camera

8" color monitor 60m underground drain pipe inspecion camera

Pipe inspection camera quick view
  ·  8 inch TFT LCD monitor
  ·  Φ 50mm X 88mm for pipe Φ 55mm to 600mm
  ·  waterproof IP68 pipe inspection camera
  ·  DVR contol box lead easy record and replay video, sound, photo,
  ·  With charger, 3 camera head skids, earphone, 8G sd card and keyboard
  ·  60meters fiberglass push rod cable with meter counter(120m/200m optional)
  ·  Widely used in industial plumbing pipeline inspection, builing / underground pipes inspection, water course study, drainage channel inspection, Outfall pipes inspection, etc


Pipe inspection camera specific information

Pipe inspection camera head
  *  Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
  *  Aluminum camera housing, IP68 waterproof
  *  Camera lens window material sapphire glass
  *  700 TVL 1/3" Color CCD Self-levelling Camera
  *  Field of view 90°
  * 1 8pcs LED lights, lighting adjustable

Pipe inspection camera monitor
   * 8 inch TFT LCD monitor
   * Brightness: 400cd/m2
   * 4: 3 display model
   * Resolution: 800*600

Pipe inspection camera DVR control box
  * DVR control buttons
  * SD card (max 64G) jack
  * LED brightness adjusting knob
  * A / V & photo selection available
  * On/off microphone control button

Pipe inspection camera battery pack
  * 6600mA Li-ion battery
  * AC110V-240V 1.5A power charger
  * Charging time 5 hours, working time 6 hours

Pipe inspection camera cable reel
  * Fibreglass push rod cable with meter counter
  * Cable diameter Φ 9mm
  * Cable length from 60m to 120m optional
  * Stainless steel handle cable reel
  * Reel size: L70xW28xH84 cm

Carrying case
  * ABS carrying case size: 520X435X200mm
  * Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
  * Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Advantage of  pipe inspection camera
   1 CE FC RoHS UL SGS supported
   2 We as a leading manufacturer specialize in pipe inspection systems & cameras.
   3 Rich experience of 8 years to design, produce and export.
   4 France CYBERIA SAS, and Shenzhen Institutes of Advanced Technology support.
   5 Professional engineers guarantee the reliable products.
   6 Strong production line provide best price, good quality and fast delivery.
   7 Inquiry will be replied within 24 hours
   8. 2 years warranty
