High Resolution Drain Pipe Inspection Camera with 600 Tvline
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen, China |
|---|---|
| Payment Type: | L/C, T/T, Paypal, Money Gram, Western Union |
Product Description
Product Description
High Resolution Drain Pipe Inspection Camera with 600 Tvline

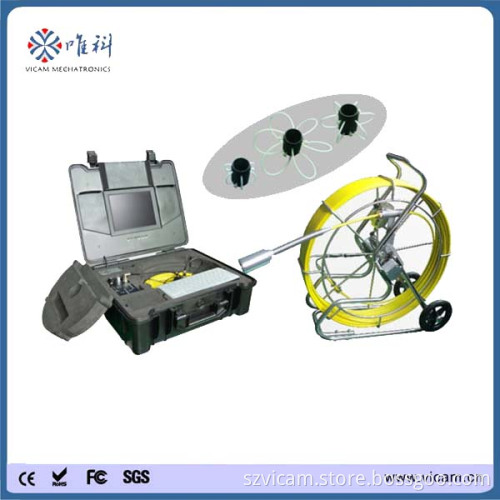

High Resolution Camera listing description
1) 10 inch HD LED minitor
2) aluminum CCD camera head with 3 skids
3) 60m to 120m ø 9mm fiberglass push rod cable
4) 6600mAh li-ion battery pack
High Resolution camera detailed description
Camera Head
* CCD color 600 TV lines
* Camera head size Φ 50 X 88mm for pipe Φ 100mm and up
* Image sensor 1/3 inch
* Self-leveling picture
* Field of view 90°
* Camera lighting 18 white LEDs
* Camera lens cover material sapphire glass
Cable Reel with Meter Counter
* Counter device error rate less than 0.1%
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
Portable Snake rod push cable with stainless steel Camera Head
* Camera head size Φ 23 X 45mm for pipe Φ 25mm and up
* Fiberglass Φ 5.2mm rod push cable reel 20m (30m, 40m optional)
Monitor
*10 inch HD LED monitor
* Power supply DC 12V
DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card)
* Li-ion Battery power supply (18650 X 9 PCS 6600 mAh)
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)
Unit control carrying case
* ABS Carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
High Resolution Camera listing description
1) 10 inch HD LED minitor
2) aluminum CCD camera head with 3 skids
3) 60m to 120m ø 9mm fiberglass push rod cable
4) 6600mAh li-ion battery pack
High Resolution camera detailed description
Camera Head
* CCD color 600 TV lines
* Camera head size Φ 50 X 88mm for pipe Φ 100mm and up
* Image sensor 1/3 inch
* Self-leveling picture
* Field of view 90°
* Camera lighting 18 white LEDs
* Camera lens cover material sapphire glass
Cable Reel with Meter Counter
* Counter device error rate less than 0.1%
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
Portable Snake rod push cable with stainless steel Camera Head
* Camera head size Φ 23 X 45mm for pipe Φ 25mm and up
* Fiberglass Φ 5.2mm rod push cable reel 20m (30m, 40m optional)
Monitor
*10 inch HD LED monitor
* Power supply DC 12V
DVR Control Box
* DVR power supply 12V DVR work current 200mA
* Storage medium SD card (8G SD card)
* Li-ion Battery power supply (18650 X 9 PCS 6600 mAh)
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)
Unit control carrying case
* ABS Carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
| CCD Aluminum camera head data | ||||||
| camera size | Φ50mm×89mm | |||||
| camera housing material | aluminum | |||||
| camera window | sapphire glass | |||||
| connecting type | golden pins slip-ring connection | |||||
| sensor | 1/3" color CCD | |||||
| field of view | 90° | |||||
| resolution | PAL:720H×576V NTSC: 720H×480V; | |||||
| horizontal definition | 420TVL | |||||
| picture | Self-leveling | |||||
| S/N rate | >48dB(AOC on) | |||||
| electronic shutter | 1/50(1/60) - 1/100000 s | |||||
| sensitivity | 0.01Lux | |||||
| video output | 1.0 Vp-p / 75Ω | |||||
| lighting | 18 high intensity white LED, brightness adjustable | |||||
| waterproof | yes, class IP68 | |||||
| working voltage | DC 12V | |||||
| working current | 63mA Max (LED Max: 120mA) | |||||
| operating temperature | -10ºC~60ºC | |||||
