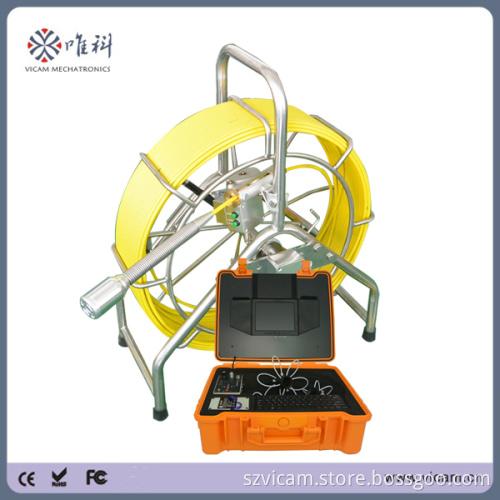

Amphibious Pipe Camera Inspection system
Camera Head

*1/3" Color CCD 600 TV lines
* Camera size Φ 40mm X 100mm for pipe Φ 55mm to 600mm
* Waterproof: yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: sapphire glass
* 3 size Camera skids for different pipe diameter use(105mm, 145mm, 225mm)
Monitor
*8 inch TFT LCD monitor
* Power supply DC 12V
DVR Control Box

* DVR power supply 12V
*DVR work current 200mA
*Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 x 9 pcs 6600 mAH)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)
Cable Reel with Meter Counter

*Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size 550 X 660 X 320 mm
* 120m Φ 7 mm fiberglass rod push cable ( 60m optional)
* The weight of the cable reel 12.5kg
Unit control carrying case
* ABS Carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Delivery time 1 week
