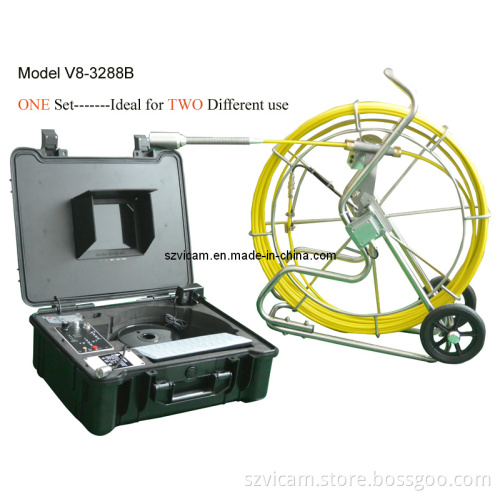

Multi-Purpose Pipe Inspection Camera System

Multi-purpose Pipe Inspection Camera System

1. Heavy-duty CCTV Inspection kit

Big Camera Head

* 1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass
* 3 size Camera skids for different pipe diameter use(110, 154, 230mm)

Havey-Duty Cable Reel
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)
* New design Counter device error rate less than 0.1%

2. Handle inspection kit

Small Camera Head
* Stainless steel bullet waterproof camera Φ 23 X 45mm
* 30m soft cable
* handle cable reel
* ideal for underwater or vertical pipe inspection

Monitor

* 8 inch TFT LCD monitor
* Display model: 4: 3
* Visible angle: Horizontal & vertically 170°
* Power supply DC 12V

DVR Control Box

* Power supply 12V
* DVR work current 200mA
* Storage medium SD card (8G SD CARD INCLUDED)
* Li-ion Battery power supply pack (18650 X 9 PCS 6600 mAh)
* Charging time 5 hours, working time 6 hours
* USB jack for waterproof Keyboard (Keyboard included)
* MIC on / off button and earphone output jack ( earphone bud included)

Unit control carrying case
* ABS engineering carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Delivery time 1 week
