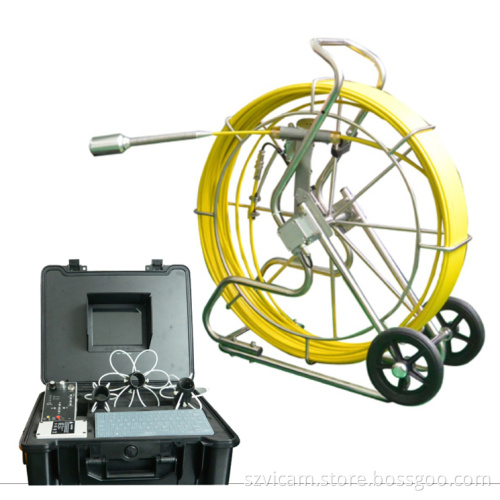

8" Screen Heavy Duty Plumbing Camera Inspection (V8-3288)

8" Screen Heavy Duty Plumbing Camera Inspection

Camera Head

* 1/3" Color CCD 600 TV lines
* Camera size Φ 50mm X 88mm for pipe Φ 55mm to 600mm
* Waterproof: Yes, IP68
* Self-levelling image
* Field of view: 90°
* Camera lighting: 18 high intensity white LED
* Camera window: Sapphire glass
* 3 size Camera skids for different pipe diameter use(110, 154, 230mm)

Monitor

* 8 inch TFT LCD monitor
* Power supply DC 12V

DVR Control Box

* DVR power supply 12V
*DVR work current 200mA
*Storage medium SD card (8G SD card included)
* Li-ion Battery power supply (18650 X 9 PCS 6600 mAh)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
* MIC on / off button and earphone output jack ( earphone bud included)

Cable Reel with Meter Counter
* Counter device on the cable reel error rate less than 0.1%
* Stainless steel Cable Reel size 770 X 830 X 360 mm
* 120m Φ 9 mm fiberglass rod push cable ( 60m optional)

Unit control carrying case
* ABS Carrying case size: 520mm X 435mm X 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum
Delivery time 1 week
