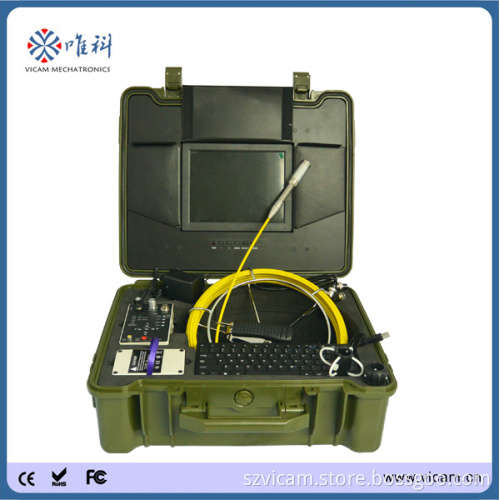

Factory Sale Borehole Locate Fiberglass Inspection Camera (V10-3188DT)
  • Factory Sale Borehole Locate Fiberglass Inspection Camera (V10-3188DT)
Factory Sale Borehole Locate Fiberglass Inspection Camera (V10-3188DT)

Factory Sale Borehole Locate Fiberglass Inspection Camera (V10-3188DT)

Payment Type:
L/C, T/T, Paypal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen, China
Payment Type: L/C, T/T, Paypal, Western Union
Product Description
Product Description
Factory Sale borehole locate  Fiberglass Inspection Camera (V10-3188DT)


Pipe Camera Head
* Camera head size Φ23 x 45mm for pipe Φ25 to 200mm
in 512Hz transmitter
* Camera head housing material stainless steel
* Camera window material sapphire glass
* Sensor size 1/4 inch
* Total Pixels PAL 720X576   NTSC 720X 480
* Field of view 120°
* Camera lighting 12 white LEDs


Monitor

Factory Sale Borehole Locate Fiberglass Inspection Camera (V10-3188DT)
*10 inch HD LED monitor
* Power supply DC 12V

DVR Control Box
Factory Sale Borehole Locate Fiberglass Inspection Camera (V10-3188DT)
* DVR power supply 12V DC work current 200mA
* Storage medium SD card
( 8G SD card included )
Rechargeable Li-ion Battery pack power supply (18650 x 9 pcs 6600 mAH)
* Charging time 5 hours, working time 6 hours
* USB jack for Keyboard
*
MIC on / off button and earphone output jack ( earphone bud included)

New design cable reel with stainless steel handheld
* Stainless steel Cable Reel size   Φ320mm×110 (h)
* 20m Φ5.2 mm fiberglass rod push cable ( 30m/40m optional)

Unit control carrying case
* ABS engineering carrying case size: 520mm x 435mm x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Delivery time 1 week
