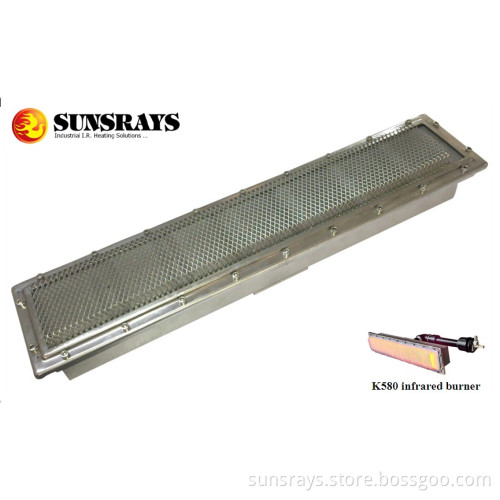

Infrared Coating Burner (K580)
- Payment Type:
- T/T, Western Union, Paypal, cash
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen, China |
|---|---|
| Payment Type: | T/T, Western Union, Paypal, cash |
Product Description
Product Description
Product Description
The K Series Integrated Mesh Group Infrared Burners are Sunsrays' patent products. They are designed and produced for multi-purposes, such as powder coating, drying, food process, latex dipping industries, etc.
The K series burners can be applied with an air/gas pre-mixer or a normal nozzle. It means that the burners can be used either with naturally pre-mixed air and gas, or with manually pre-mixed air and gas.
The specifications:
Dimension: 565mm x 140mm x 185mm (bottom-in-type),
Or 580mm x 140mm x 100mm(side-in-type)
Weight: 5.5kg / PC. (bottom-in-type), or 4kg/ PC. (side-in)
Heat output: 4000~7500 kcal/hr
LPG consumption: 0.4~0.7g/hr
Inlet gas pressure: 2.8kpa for naturally pre-mixed; And 1.2kpa for manually pre-mixed.
Inlet air pressure: 2.8~3.5kpa if needed.
The K series burners can be applied with an air/gas pre-mixer or a normal nozzle. It means that the burners can be used either with naturally pre-mixed air and gas, or with manually pre-mixed air and gas.
The specifications:
Dimension: 565mm x 140mm x 185mm (bottom-in-type),
Or 580mm x 140mm x 100mm(side-in-type)
Weight: 5.5kg / PC. (bottom-in-type), or 4kg/ PC. (side-in)
Heat output: 4000~7500 kcal/hr
LPG consumption: 0.4~0.7g/hr
Inlet gas pressure: 2.8kpa for naturally pre-mixed; And 1.2kpa for manually pre-mixed.
Inlet air pressure: 2.8~3.5kpa if needed.
