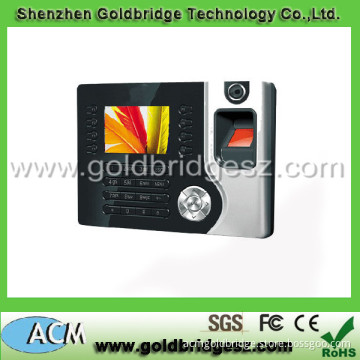

Pin & Psw & Fingerprint Standalone Access Control (ACM9800C)

Feature:

Fingerprint reader is a multifunction reader which can be connected with any professional Access Control and can be seamlessly connected with our company's access control.
Fingerprint reader features single identification modes such as fingerprint identification, Password input and card identification. It is completely compatible with profession password keyboard readers in present market, and can manage fingerprint data through communication between computer and TCP/IP and RS485.
Parameters:
Description Fingerprint access control
Working Voltage 12V
Static Working Current 150mA
Dynamic Current 250mA
Relay Contact Current 3A 120VAC/28VDC
LCD 2.4" TFT Color Screen
Operation Temperature 0 — 45
Dimension (mm) 185 * 80 * 35
Relative Operation Humidity 20% — 60%
Fingerprint Sampler High-hardness optical fingerprint sampler
Keyboard 20 tact switch
Main board Smart KM dual-core low-consumption structure
Core algorithm HAS 8.0
FRP ≤ 1%
FAR ≤ 0.0001%
Reaction time ≤ 1s
Working mode Offline/inline
Sensitivity level setting 1: N / 1: 1
Identification mode Fingerprint / Password / Card
Fingerprint + Password / Fingerprint + Card / Card + Password
Card + Fingerprint + Password
Capacity of Fingerprint 1, 500
Capacity of management records 60, 000
Communication Mode RS485, TCP/IP
Language display Simplified / Traditional Chinese, English
Vocal instruction Five parts of high quality voice
Name display Long name display ( in Chinese / English )
Time Group 30 groups
Time Section 50 sections
Alarm Alarm for removal prevention, alarm for overtime opening,
Alarm for tamper resistance, alarm for external input points
Fire fighting blocking Available
Threatening alarm Available
Exit button Available
Wigand interface Supports standard 26/34 input and output
Tamper resistance Available
Real-time monitor Available
Validity Available
Extension module ID / IC / HID
Bell ring function 20 groups of rings
Doorbell interface Available
