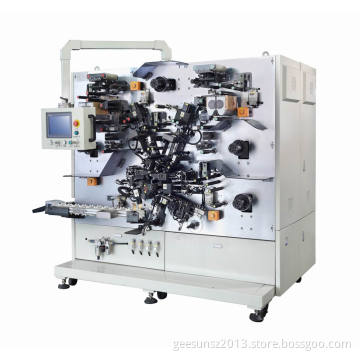

Automatic Li-ion Battery Winding for Large Prismatic Cells (GPDA-2H)

Functional Features:
1. This is used for automatic winding for prismatic lithium-ion batteries;
2. Electrode and separator are loaded in coil, it will apply automatic winding, end taping and unload;
3. Double work stations: Station 1 to insert pin and wind; Station 2 to cut separator, apply end tape, withdraw pin and unload;
4. Electrode position detect and correct functions are provided before winding;
5. Variable speed and variable tension controls are provided;
6. Feeding material will be detected based on anode and cathode electrodes; Failed ones will be marked, winded separately and removed automatically;
7. With special brushes and vacuum cleaner installed in the cutting place to remove powder and dust;
8. Electrode cutting function is added with auto compensator;
9. The total and accumulative electrode length is adjustable to realize the continuous winding;
10. Electrode and separator possess automatic coil changing function, to realize the continuous winding.

Specofocation Parameters:
