Products Overview:

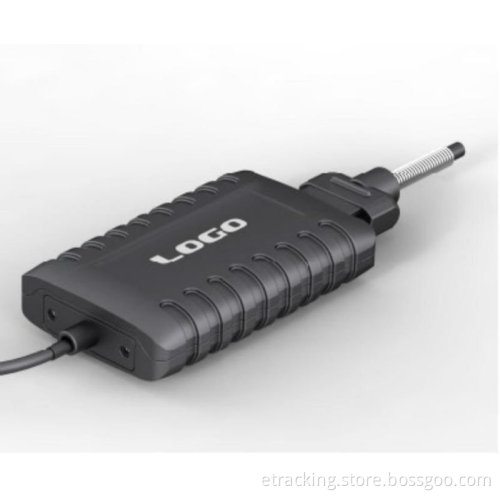

XT-007G is a waterproof multi-functional and hybrid GPS/GPRS tracker
For vehicle, motorcycle and personal.





Features and Functions:

Water resistance (IP67)
Built-in GPS & GSM antenna (external GPS antenna optional)
SMS/GPRS (TCP/UDP) communication
SMS/GPRS tracking (support TCP & UDP, http is ready soon)
Real time tracking
Track by interval/demand
Background voice surveillance
Two way communication(optional)
Power saving mode
SOS alarm
ACC detection
Oil detection
Remote fuel/engine cut off
Geo-fencing alarm
Over speed alarm
Motion sensor
Low power warning
Built- in backup battery
External power cut off alarm
Remove off tracker alarm
"No GPS" signal warning
Data logger (built-in 8M flash memory)
Support FOTA (firmware on the Air)


For Your Safety:
Read these simple guidelines. Not following them may damage to the device or not perform proper function of application.
Correct Connection
When connecting with other device, read carefully its manual so as to carry out correct installation. Do not connect it to other incompatible devices.

Chosen Accessories
Use our chosen accessories to avoid damage to XT-007.

Hidden Installation
In order to avoid damage by external force intentionally, please install XT-007 in a hidden place.

Protect from blasting
Follow related restrictions. Do not use XT-007 when blasting is in progress.

Repair and service
Only qualified engineer with technical support can repair XT-007.

Water resistance
XT-007 is water resistant (close to IP67).



Function Parts and Interfaces:


Red LED- Power
Always on
Charging
1s on and 3s off
Normally work
Blue LED- GSM
0.3s on and 0.3s off
GSM module initializing
Always on
GSM module can't register network
1s on and 3s off
GSM module is registered network
0.1s on and 3s off
GSM module is registered network and GPRS function works well
Orange LED- GPS
0.3s on and 0.3s off
GPS module initializing
1s on and 3s off
GPS module works well, but GPS position is not fixed
0.1s on and 3s off
GPS module works well and GPS position is fixed
Buttons
SOS Button
Press it for 3 seconds to make a call and/or send a SMS to authorized numbers.
Other connectors
Switch
Turn on/off device
GPS Antenna interface
Built-in GPS antenna, external GPS antenna (optional)
SIM Card Holder (Inside)
Insert SIM card here
Mini USB Port
Used for charging, firmware update, configuration on PC
Input/Output Interface
Distinguish the inputs and outputs from color
Color
PIN
Function
Red(thick)
VCC
DC In (power input)
Input voltage: 7.5V ~ 24V/3A
Black
GND
Ground
Green
OUT1
Relay output 1
Yellow
OUT2
Relay output 2
Blue
AIN1
Analog input 1 (input voltage: 0 ~ 3V), normally use for Fuel Detection.
Grey
AIN2
Analog input 2 (input voltage: 0 ~ 3V)
Red(thin)
SOS
To connect the SOS button
Brown
IN1
Digital input 1 (positive triggering)
White
IN2
Digital input 2 (positive triggering)
Purple
ACC
Digital input 3 (positive triggering), normally use for Ignition Detection.
Pink
SPK+
Speaker
