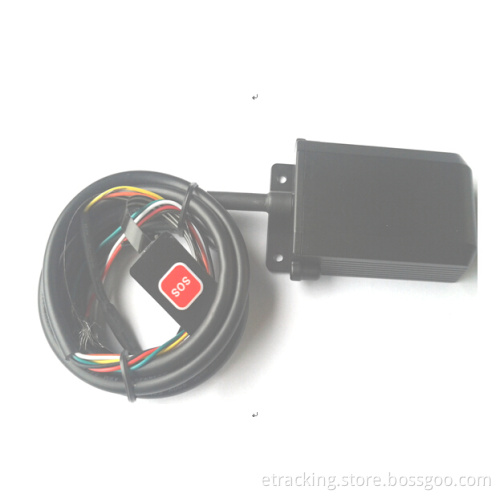

Quad Band Motorcycle Motorbike GSM GPS Tracker Xt-009 IP67 Waterproof, Support SMS&GPRS Tracking

Quad Band Motorcycle Motorbike GSM GPS Tracker XT-009 IP67 Waterproof, Support SMS&GPRS tracking

1. Overview of function

SMS/GPRS sending data

Movement/ Geofence/ Speed/ Low battery alarm

ACC alarm

SOS alarm

Remote cut-off electricity &oil function

Collision vibration alarm (Crash alarm)

Voice monitoring

Main power disconnect alarm

SD card save GPRS data save-saves

Remotelyupdate firmware Update firmware remotely

Distance limit data transmission

Waterproof IP67
2. Application

Vehicle/ship /motorcycle / rental / fleet management

Children / olderly / disabled guardianship

Personnel safety

People management

Tracking an offense
7. Startup
Put the SIM card and SD card in right places, connect the battery to tracker or connect the tracker to 6-36Vcar/motorcycle battery. It will turn on automatically. The red light will on if connect tracker to 6-36V car/motorcycle battery, it will off if disconnect.
The green light will blink 2 times per second after start up. After 20-30 seconds, the light will on 1 seconds, off 3 seconds, GSM signal working normal.
It takes 40~90 seconds to receive the GPS signals, in order to get good GPS signals, please put the tracker outdoor.
8. Usage
This product has two modes, tracker and monitor, the default mode is tracker mode, you can send SMS monitor + password to switch to monitor mode and then send tracker + password to switch back to tracker mode.

9. Tracker mode
9.1 Initialization

9.2 Changer password

9.3 Set authorized number

9.4 SMS format

9.5 Auto-track

Send SMS t030s005n+password to the unit, it will report the Geo-info at 30s intervals for 5 times(s: Second, m: Minute, h: Hour).

The setting must be in 3 digits and at maximum 255 in value.

9.6 Tlimit function
9.7 Geo-fence
9.8 Movement alarm
9.9 Overspeed Alert
9.10 IMEI check
9.11 Firmware version check

9.12 Time Zone setting
9.13 SOS button
9.14 SMS LINK
9.15 SMS ONE
9.16 Low Battery Alert
When the battery inside is less than 3.7 V, it will send low battery alert to admin number
9.17 SMS Center
9.18 GSM ID
GSM ID is in each sms or gprs data. The tracker can be found by GSM ID without gps signal. But the customers have to ask their GSM operator for data base of the GSM ID.
9.19 Motion Sensor
9.21ACC status alert
9.22. Remote oil & electricity cut-off function
9.23 OTA feature
Can update firmware remotely when the GPRS and SD card work normally
10 Monitor mode
11 GPRS set
Our platform http://183.90.185.204/
User name: DEMO
Passwork: 123456

Package included:

1pcs*XT-009
