Hot! Car Tracker GPS GSM GPRS Tracking Device GPS Tracker Tlt-2h Sca-0854

About Products

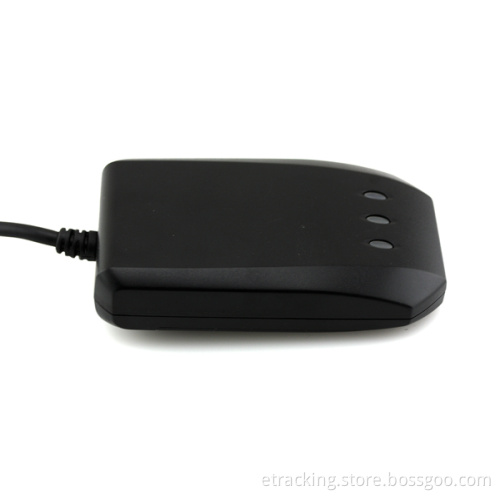

TLT-2H GPS / GSM tracking device is a built-in GPS and GSM / GPRS module remote location equipment for vehicles. This is a small, precision
High, remote location tracking device. Based on the Global Positioning System satellites, under dynamic conditions it can provide accurate positioning information. Personal remote positioning
Equipment that can transmit the longitude and latitude coordinate to authorized cell phone, you can send data through the GPRS channel to the service platform for real-time tracking.

Applications
TLT-2H GPS / GSM vehicle tracking device can be used for motorcycles, electric golf cars, ordinary private car.
Finance and insurance industry initiative to locate anti-theft system
The installation of large and medium-sized projects
Logistics Cargo Tracking
Bank credit vehicles intelligence management and monitoring system
Car rental companies, outdoor mechanical equipment, special anti-theft system
Various industries vehicle command, scheduling system
Car anti-theft system


Characteristics and main functions
1. Support GSM 850/900/1800/1900 MHz (two-band and quad-band selection). Can work around the globe!
2. High sensitivity, SIRF Star GPS chipset with low power consumption!
3. Even in weak signal conditions can be well positioned, even in limited space areas, such as urban canyons can work.
4. Fast signal acquisition.
5. To support a single location and continuous tracking
6. Support alarm, preset 3 phone numbers.
7. To support inquiries via SMS or Internet location or real-time and historical trajectory.
8. SOS button send the exact location information to an immediate rescue / action.
9. To support oil power off function and power off the oil recovery.
10. High reliability circuit design, meet the automotive industry related standards.

Our advantage (relative market similar products):
1. Small, easily hidden, can be used for motorcycle security, can also be used for vehicle positioning;
2. Built-in GPS antenna 25 * 25, GSM antenna, GPS monitoring devices to solve the installation of car trouble;
3. Price concessions, the company developed its own production of GPS module, GSM module, no external microcontroller and FLASH lower cost, and efficiency
Higher;
4. With anti-crash function, care about the long and stable operation of the machine;
5. A sound procedural framework, can be a good platform with more class;
6. With GSM, GPRS no signal, or network unreasonable circumstances, replacement of the historical location data capabilities;
7. Tamper cut function, power failure alarm;
8. Specific vibration sensor, power saving function;
9. With adaptive fuse, well protected machine, the maintenance of the machines work properly.

Specification
MTK GSM module program, built-in GSM 850/900/1800/1900 MHz band or quad-band support for both TCP protocol
GPS chip SIRF-Star III chipset
GPS sensitivity-159dBm
GPS frequency L1, 1575.42MHz
C / A code 1.023MHz
Channel 20-channel, full-track
GPS position accuracy of 10 meters, 2D RMS
GSM location accuracy achieved after
Speed accuracy 0.1 m / s
Time precision GPS time synchronization
Coordinates WGS-84
Average of 1 s hot start
Average of 38 s warm start
The maximum height limit 18, 000 meters (60, 000 feet).
Limits the fastest 515 m / s (1000 section).
Acceleration limit is less than 4g

Other
Operating temperature -20 ° C-65 ° C
Humidity 5% ~ 95% non-coagulation
Size 88mm × 46mm × 18mm
Voltage 12V
The average standby current <84mA
LED lights green, blue, red LED light display GSM, GPS and power status
Add an SOS SOS Emergency key key: Make an emergency call for help
Package Contents:
1 x GPS/GSM Vehicle Tracker
1 x Lithium battery
1 x Cable (Used for connecting the GSM/GPS tracker to motorcycle or car)
1 x Instruction on CD-ROM
