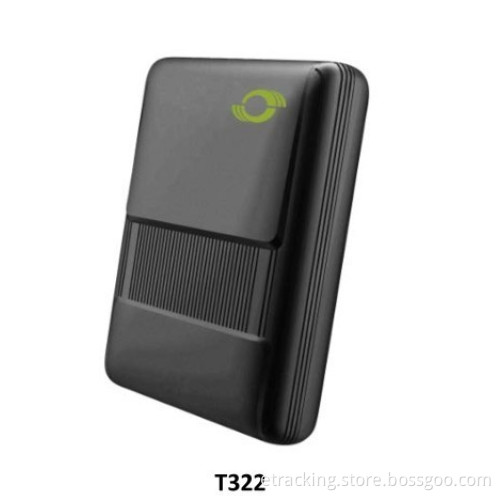

2013 Newest Type GPS Vehicle Tracker T322 Meitrack T322 Meitrack Tracking System with Speeding Alarm and Sos Alarm

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

Welcome to Visit my store
Wholesales & Drop shipping is available. It is my pleasure to build a long-term business relationship with you. I will try to offer the best price for your resell business! Please feel free to contact us
Applications

Private Car Tracking and Security
Official Car Tracking and Security
Personal Tracking

Product Function
U-blox 7 GPS and Quad Band GSM 850/900/1800/1900MHz
GPS + GSM Dual Module Tracking
SMS/TCP/UDP (MEITRACK Protocol)
Track by Time/ Distance Interval
Track on Mobile Phone
Listen-in or Two-way Audio (Optional)
Internal Flash Memory (1M)
Inbuilt Motion Sensor
Internal Backup Battery 350mAh, Long Stand-by Time
SOS Alarm
Geo-fence Alarm
GPS Blind Area Alarm
Low Battery Alarm
Speeding Alarm
Tow Alarm
GPS Antenna/ External Power Cut Alarm
Mileage Report
Engine Cut (Engine immobilization) Alarm
3 Digital Input(1 Negative, 1 Positive and 1 can be set through software)
2 Output
1 Analog Input for Fuel Detection (Optional)
1 Output for Buzzer Alarm (Optional)
Wireless Remote Control (Arming, Disarming) (Optional)

Items	Specifications
Dimension	70.55419.5mm
Weight	65g
Input Voltage	DC 11V~36V/1.5A
Back-up Battery	350mAh/3.7V
Normal Working Power Consumption (12V)	45mA normal working current (12V ACC ON, 10sec interval for data transmission, average current
Battery Normal Working Power Consumption	90mA (3.8V, GPS module OFF, 10sec interval for data transmission, average current)
Battery Standby Power Consumption	7mA (3.8V, GPS module OFF, no data transmission, average current)
Operating Temperature	-20C~80C
Humidity	5%~95%
Work Time	50 hours in power-saving mode and 3.5 hours in normal working mode
LED	3 LED lights to show GPS/GSM/Power status
Button	1 SOS (send SMS or Call), 1 power button, 1 positive or negative trigger switch by the door
Microphone/Speaker	External (Optional)
Memory	1M Byte
Sensor	Motion sensor
GSM Frequency	GSM 850/900/1800/1900MHz
GPS Chip	Latest GPS U-blox 7 chipset, 50 channels all-in-view tracking
GPS Sensitivity	-161dB
Positioning Accuracy	10 meters
GSM Antenna	Internal Antenna
GPS Antenna	Internal / external connection MMCX antenna (Optional)
I/O	3 Digital Input(1 SOS, 1 Door Trigger input (can be set to be negative or positive ), 1 ACC Detection) 2 Output(1 for Buzzer Alarm,1 for Remote Engine Cut) 1 Analog Input 1 RS232 Interface(can charge battery) 1Wireless Remote Control (433Mhz)(Optional)
