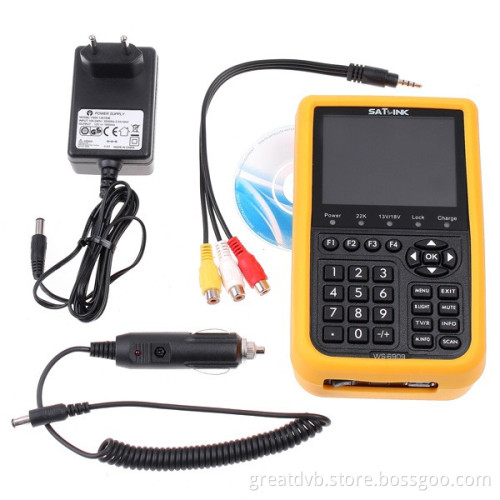

Satlink Ws-6909 DVB-S & DVB-T Satlink Ws6909 Original Satlink DVB-Satellite Terrestrial Combo Meter

Satlink Ws-6909 DVB-S & DVB-T SatLink Ws6909 Original Satlink DVB-Satellite Terrestrial Combo Meter
Satlink ws-6909 combo
DVB-Satellite & Terrestrial Combo Meter SF-6909 Specificitions:
Main Function
DVB-T
COFDM Demodulated
Frequency range: 46-870MHz
Level range: 40-110dBuV
Input Resistance: 75ohm
Demodulation: QPSK, 16QAM, 64QAM
Test: BER, C/N, FEC Signal Quality and Strength
Multi-Channel Simultaneous Measurement
Auto Full Frequency Scan
Auto scan of frequency selected
Power supply at RFIN: 5V/12V/15V/18V/24V*(100mA)
DVB-S
Input Frequency range: 950-2150MHz
Input Level: -65dBm-25dBm
Input Resistance: 75ohm
Symbol rate: 2Msps-45Msps
Test: BER, C/N, FEC Signal Quality and Strength
Auto search: NIT Search, Manul Search
DisEqC, 22K Supported
LNB power supply: H + 18V + 13V 400mA
OTHER
8.4V/3000mAh Lion battery
Power adapter input: AC 90V-240V/50Hz
Power adapter output: DC 12V/1.5A
Working time: 4-6 hours (full charge)
Charging time: 5 hours from flat
Car charger supplied
Dimension: 155 X 95 X 45mm
Net weight: 06kg
