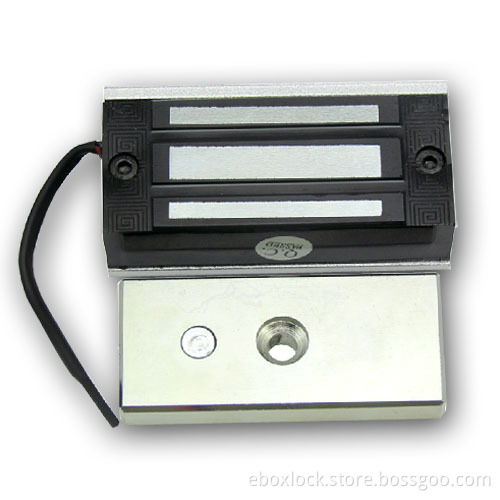

Electromagnetic Lock for Cabinet 60kg Holding Force (ME1206)

Electromagnetic lock ME1206 is a compact electromagnetic lock ideal for cabinets, drawers and cupboards. Surface mounting either vertically or horizontally offers easy and flexible installation. Hardware accessories include brackets, housings, and dress covers as needed for every opening type. The Electromagnetic lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. It is with high durability and low maintenance.

Features
Superior alloy-constructed lock body and strikes
Architectural brushed stainless steel finish provides corrosion resistance
Surface mounting and easy installation using only a drill and allen wrench
Fully sealed electronics for tamper proof and weather proof
Instant release circuit, no residual magnetism
Low noise operation
Accepts access control signals from numeric keypads and card readers
Can be fitted to cabinet, locker, drawers and steel furniture etc

Specification
Operation Voltage 12VDC ±10%
Power Consumption 300mA@12VDC
Operation Mode Fail unlock
Holding Force 60KG(100lbs)
Cycle Rating More than 1,000,000
Working Temperature -10ºC ~ +55ºC
Lock Dimensions LxWxH 80mm*37.5mm*24mm
Strike Dimensions LxWxH 74mm*35mm*10mm
Gross Weight 0.7kg
Protection Class IP20

Applications
The electromagnetic lock is ideal for various applications as following:
Storage cabinet
Metal cabinet or steel furniture
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Museum or retail product display cases
Pharmaceutical cabinets and drawers
