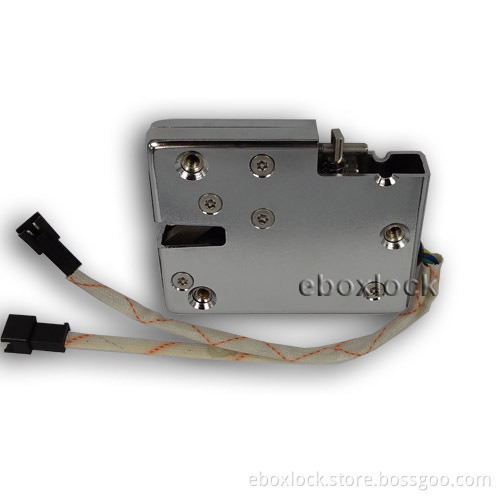

Smart Lock for Electronic Locker (MA1215LS)

Smart Cabinet Lock MA1215LS is a compact and all-metal lock with monitoring, ideal for steel furniture, cabinets, drawers and lockers. Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. An optional microswitch provides an output signal for remote monitoring or external access system control. The smart lock allows mechanical override for emergency open. Electronic Cabinet Lock MA1215LS is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.

Features
Superior heavy duty metal construction
Surface-mounted compact electric lock
Convenient mechanical override enables manual release during power failure
Three-bolt regular triangle mounting enables high security and low install cost
Optional internal microswitch for latch open/close output signal
Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,
Can be fitted to cabinet, locker, drawers and steel furniture etc
Patented Design
2 years limited warranty

Specification
Operation Voltage                              12/24VDC intermittent ±10%
Power Consumption                           12V DC   1500mA
Operation Mode                                  Fail Locked
Holding Force                                     150KG
Maximum power on time                     Less than 30 second
Solenoid                                              Rated for intermittence use
Cycle Rating                                        More than 1,000,000 times
MS Contact Rating                              2A @25V
Mechanical Override                           29.5mm gap
Working Temperature                         -20ºC ~ +60ºC
Dimensions LxWxH                             72mm*56mm*13.8mm
Gross Weight                                      250g
Protection Class                                  IP20
Compliance                                         CE and RoHs certificate

Applications
The electronic cabinet lock is ideal for various applications as following:
Electronic lockers for storage or delivery
Metal cabinet or steel furniture
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Museum or retail product display cases
Pharmaceutical cabinets and drawers
Electronic mailbox and lock box

System Diagram:
