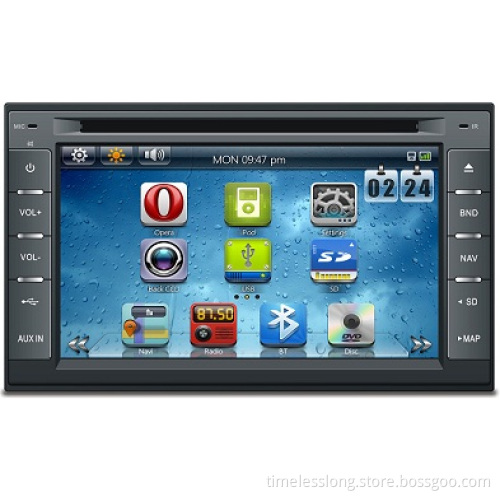

2 DIN Universal Car DVD with Cortex-A9, GPS, Digital TV, Bt, 3G (TKD-7069)

Cortex A9, 800MHz, RAM256MB
HD Digital (800*480)TFT LCD montior with touch screen.
MP3/MP4/CD/VCD/DVD/DVCD/SVCD/CD-G/CD-R/CD-RW/JPEG/WMA
Build in Bluetooth with A2DP
Build in GPS navigation
USB/SD
TV
iPod ready
3G support
AM/FM/RDS(optional)
AV inout/output
4 X 50W amplifer
DVB-T/ISDB-T(optional)
Unique 3D flash graphical user interface
Multilanguage OSD

SPECIFICATIONS DESCRIPTION
Cortex-A9
Processor speed
800MHz
Monitor Type
DIGITAL 8 INCH TFT LCD
CPU
CSR
USB / SD input
USB PORT AND SD CARD READER
Reverse camera
REVERSE CAMERA COMPATABLE
GPS Navigation
GPS NAVIGATION SUPPORTED
AUX - IN
YES
Display Resolution
800X480
Active Area
51mm*51mm
Number of Pixel
800*480(RGB888)
LCD Profile Ratio
16: 09
Unit Operation Voltage
9V~16.7V
Unit Operation Temperature
TEMP- 20C + 70
Unit Storage Temperature
TEMP- 40C + 85
DVD Decoder IC
MTK MT1389DE
DVD / CD lens brand
Hitachi
GPS module
WINCE 6.0 CSR3361
Compatibility / Disc Formats
MP3/MP4/CD/VCD/DVD/DVCD/SVCD/CD-G/CD-R/CD-RW

JPEG/WMA
AM/FM radio
YES AM/FM RADIO
Radio range value
87.5 - 108.0 MHz 50kHz - 100kHz
No. Of Preset Stations AM/FM
FM1 6/FM2 6/FM3 6 /AM 1 6/AM2 6
TV preset stations
100
Amplifier
TDA7388
Electronic Audio Control
BD3702FV
Menu Language
English()
Video Input
PAL/NTSC/SECAM
Audio Input
2 AUDIO INPUT
Video Output
PAL/NTSC
Audio Output
4.1 CH output
On screen Display
TV System
PAL/NTSC/SECAM
AV System
PAL/NTSC/SECAM
Accessories
CONNECTION LINE/OPERATING INSTRUCTIONS/GPS ANTENNA(OPTIONAL)
