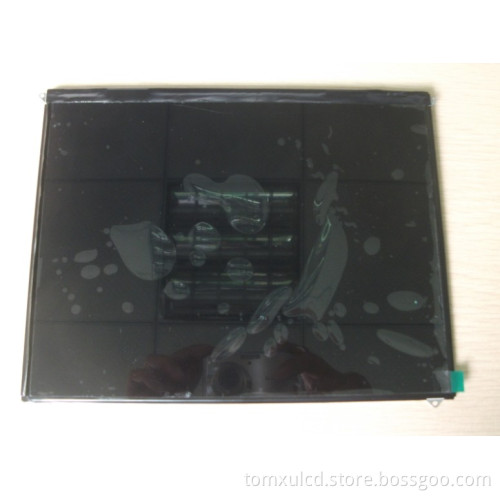

9.7 Inch Qxga TFT LCD Modules for MID, Pad

LG 9.7 inch TFT LCD modules for MID .




Pin Symbol Description Pin Symbol Description:

1 GND Ground 31 LED Cathode 5B LED Cathode (Negative)
2 HPD Hot Plug detect 32 LED Cathode 4B LED Cathode (Negative)
3 GND Ground 33 LED Cathode 3B LED Cathode (Negative)
4 Vin VCC 3.3V(typ. ) 34 LED Cathode 2B LED Cathode (Negative)
5 Vin VCC 3.3V(typ. ) 35 LED Cathode 1B LED Cathode (Negative)
6 Vin VCC 3.3V(typ. ) 36 GND Ground
7 Vin VCC 3.3V(typ. ) 37 LED Cathode 6A LED Cathode (Negative)
8 GND Ground 38 LED Cathode 5A LED Cathode (Negative)
9 AUX_P True Signal Auxiliary CH. 39 LED Cathode 4A LED Cathode (Negative)
10 AUX_N Complement Signal Auxiliary CH. 40 LED Cathode 3A LED Cathode (Negative)
11 GND Ground 41 LED Cathode 2A LED Cathode (Negative)
12 LANE0_N Complement Signal Link Lane 0 42 LED Cathode 1A LED Cathode (Negative)
13 NC 43 GND Ground
14 LANE0_P True Signal Link Lane 0 44 NC
15 GND Ground 45 LED Anode 2 LED Cathode (Positive)
16 LANE1_N Complement Signal Link Lane 1 46 LED Anode 2 LED Cathode (Positive)
17 NC 47 NC
18 LANE1_P True Signal Link Lane 1 48 LED Anode 1 LED Cathode (Positive)
19 GND Ground 49 LED Anode 1 LED Cathode (Positive)
20 LANE2_N Complement Signal Link Lane 2 50 NC
21 NC 51 GND Ground
22 LANE2_P True Signal Link Lane 2
23 GND Ground
24 LANE3_N Complement Signal Link Lane 3
25 NC
26 LANE3_P True Signal Link Lane 3
27 GND Ground
28 GND Ground
29 GND Ground
30 LED Cathode 6B LED Cathode (Negative)
