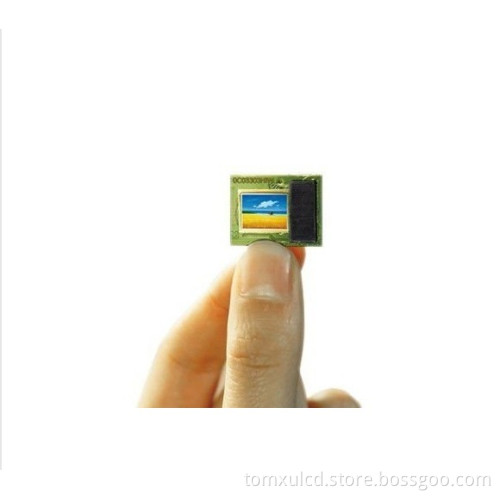

0.5 Inch Amoled Google Glass Display

0.5 inch AMOLED Microdisplay, including color OLED and Mono color OLED. OLED Micro-display has some particular advantages such as self-emitting, low power consumption and thermal shock resistance and solid-state structures. It is suitable for military and police applications such as light thermal weapon sight, stimulated training system and helmet-mounted display, and infrared telescope; It can also be used in civil market.

Specifications
1, 0.5 inch OLED display
2, With a resolution of 800*600

Technical specification
Format: 0.5inch, 800× 600
Pixel: 12.6μ M× 12.6μ M
Color: 24bit, full color, R, G, B Vertical Stripe
Grey levels: 256
Uniformity: >92%
Contrast Ratio: >1000: 1
Luminance: >70CD/m²
Interface: 1.8V CMOS
Power Supply: 1.8V(Core)/5V(OLED)
Power Consumption: Encapsulation Size: 22mm× 17mm

The Product Characteristics
1. Low Power Consumption AMOLED Technology
- 0.18μ M CMOS technology
- Full digital video signal processing
2. Support multiple digital video format (ITU BT. 601/656)
- 24bit, 4: 4: 4 RGB/YCbCr
- 16bit, 4: 2: 2 YCbCr
- 8bit, 4: 2: 2 YCbCr/Mono
3. Support Binocular Stereovision Mode Application
- Frame/Field sequential mode
4. Video Signal Enhancement
- Brightness/Contrast
- RGB Offset
5. Gamma Correction
6. H/V Scanning Direction Control
7. H/V Shift and Position Control
8. Embed Module
- DC/DC Driver
- Temperature Sensor for Luminance Compensation
9. Built-in Test Patterns
10.2 wires Serial Interface
