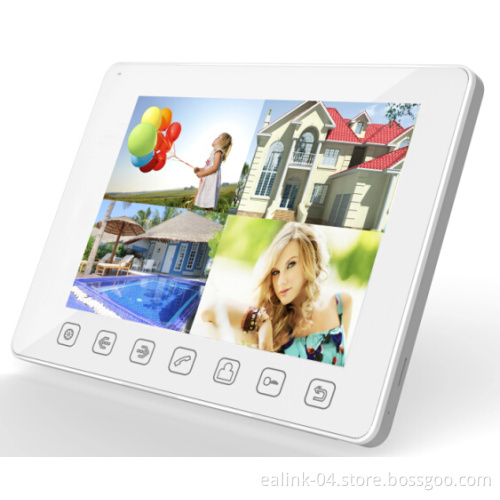

10" Home Security Video Door Phone

10" Home security video door phone
Model: M2510A

Can connect DVR, and display DVR directly.

Feature:
1.10.1" inch color digital LCD
2.4 wires connection
3. Support internal communication
4. Video intercom with recording

Special function:
² Door monitoring function;
² Lock control;
² Support VGA connection to DVR
² Call transfer to the other monitor;
² Internal-communication;
² Color Contrast, Brightness adjustment;
² Visitor-call transfer;
² Can connect a DVR & Display it in the monitor directly.

Basic function
1. Intercom function: See the image of the visitors and talk with them through the Video Door Answering Systems.
2. Door monitoring function: You can see what going on in front of the doorbell or CCTV camera on the monitor at any time through the Door monitoring system.
3. Lock control: Unlock the door through the intercom door security system.
4. Optional volume adjustment: According to residential needs, the chime volume and talking volume can be adjusted;
5. Don't disturb choice: The best video door phone can set No-Disturb state if you don't want to be disturbed by visual doorbell ring.
6. Can connect DVR and monitor CCTV & outdoor unit.

Expand function
1. The 4 wire villa intercom system supports visitor-call transfer between monitors and make internal call among intercoms;
2. The smart home system supports indoor monitor listening function. It can be active if you have no less than 2 indoor monitors. Indoor units can choose the monitored number and the listening time is 8 hours;

Specification:
L Display screen: 10.1'' color digital LCD
L Resolution: 1024*600 TV lines
L Connection/Effective length: 4 wires/100m
L Video channels quantity: 2 doorbells +2 CCTV+ 1 DVR
L Additional monitors quantity: Up to 3
L Power (Rated power/standby power): DC13.5V/0.8A(7W/1W)
L Key type: Touch keys
L Dimension: 258*178*19.7mm

Supports Solutions:
L Solution 1: 2 doorbells + 4 monitors + 2 CCTV cameras +1 DVR
L Solution 2: 1 doorbell + 2 monitors + 3 CCTV cameras + 1 DVR

All our models are passed CE & RoHs certificate, and with 2 years warranty, you are welcome to visit our factory or take samples to test our quality.

Please feel free to contact us if anything we can do for you.
