Commercial Single Head Flat Embroidery Machine for Logo Cap Sewing and Embroidery

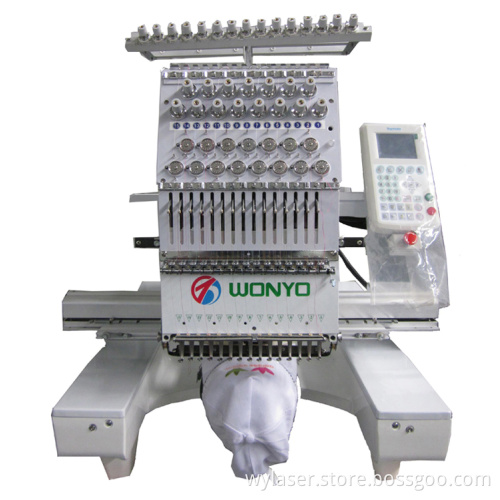

Bridge type Single Head Embroidery Machine WY1201C

I. Main features
A. Suitable for flat embroidery, cap embroidery, T-shirt embroidery and finished garments embroidery
B. Automatic thread trimmer
C. Maximum speed 850 SPM
D. 6/9/12 needles can be provided.
E. Color LCD display showing real time stitching
F. USB input port
G. Automatic color change
H. Thread break detection
I. Pre-sew design trace capable
J. Memory size 2, 000, 000 stitches
K. Emergency stop
L. Electricity: 110V/60Hz or 220V/50Hz available
M. Built-in bobbin winder
N. Keeping current data or work when emergency stop or power off
O. Mending function. (back and skip stitches under controller)
P. Switch of Cap/ flat embroidery mode eliminating hitting the frame.
Q. USB port with fast data transmission and good compatibility
X. Mainboard intergated into control panel protecting
From dust or external force.
Y. Lay-out of keys on panel is user-friendly.
Z. Built-in Network

II. Compact control panal
A. Color LCD display showing real time stitching
B. Manual, Semi-auto, Auto Color Change
C. Function keys including Menu, Speed up and slow
D. Multi languages available
E. Frame-moving keys, Manual Trimming
F. DOT ket to return to 100 degree
G. Start, Stop, and emergency Stop
H. Embroidery Status (Page Up/Page Down), USB Input,
I. Parameter Settings, Clear, ESC, Enter, etc.
J. Numeric keys for selection of needles

III. Hoops/frames inclued
2 x Shirt Front Round Hoop 9 cm (3.5")
2 x Shirt Front Round Hoop 12 cm (4.7")
2 x Shirt Front Round Hoop 15 cm (5.9")
2 x Shirt Front Round Hoop 19 cm (7.8")
2 x Jacket Back Square Hoop 30 x 30 cm (12" x 12")
1 x Sash Frame 56 x 38 cm (22" x 15")
