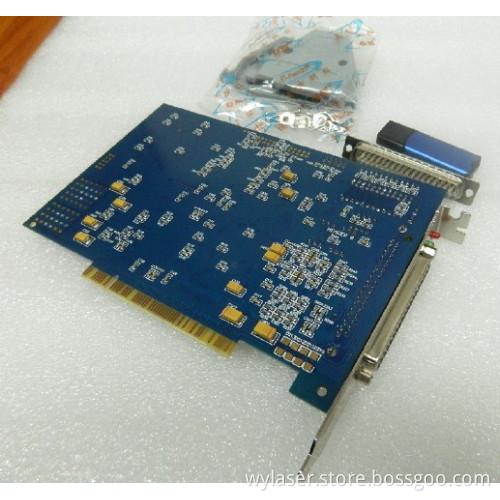

Lmc Laser Marking Card

LMC laser marking card is used for laser marking equipment control control card. The PCI bus form, through the 37 core and the upper machine interface to communicate.
Has the following main characteristics and advantages:
1. Mainly used in galvanometer type laser marking system;
2. The hardware processing data, speed, high precision;
3. Support switching YAG/CO2 way marking, can send PWM signal, support foreign all RF laser tubes;
4. Support high speed and high precision fly standard function
5. Two way 16 high-speed analog output is used to control the vibration of the mirror; Output voltage can be made to order. (typical values: + /-3.3 v, ± 5 v, ± 10 v)
6. All the way 0 ~ 5 V analog output for regulating the Q frequency
7. All the way 0 ~ 9.5 V analog output for regulating the pump power supply current
8. TTL signal (LASER) all the way used to control the LASER switch
9. All the way (PWM) used in TTL signal output modulation signal
10. Two road direction/pulse signal, can control two road stepping motor/servo motor
11. All the way for the first pulse signal TTL FPK inhibition
12. All the way hardware START signal used in connection with the external pedal switch or panel START button
13. Four ways of digital input, two road digital output, used for external auxiliary equipment and various alarm signal connection
14. PCI architecture scientific and reasonable wiring and the anti-interference processing, stability and anti-jamming is extremely high.
