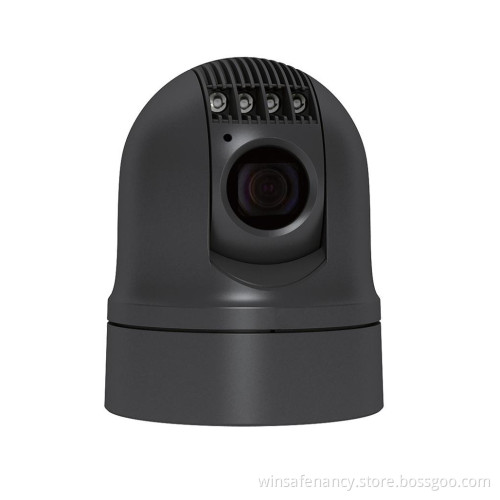

36X IR/White Rugged PTZ Cameras for Cars & Ships (WS-IRVS3601)

Features
Built-in heater, working temperature range to -45° C ~ +65° C;
Strong anti-vibration design for various tough applications;
Efficient 60M IR/White light lighting, excellent night vision performance;
Magnesium Alloy Cover, high strngth, good heat-dissipating performance;
18X/28X/36X zoom modules with 550TVL;
WDR, Digital Noise Reduction and Digital Image Stabilization(DIS) supported;
Auto Focus, Auto WB;
Auto recognize Protocol & Baud rate, soft address supported;
Pan 360° Degree continuous, tilt-15-90 with auto flip;
Pan and Tilt speed adjustable as per zooming automatically;
Camera window with optical coating lens, auto defogging;
Wide range of voltage input(10.8-28V), anti-surge to avoid wrong connection;
On-line upgrades supported;
Image flip.
Specification
Camera
Image Sensor1/4" Sony EX-View HAD CCD
Effective PixelPAL: 752(H) X 582(V); NTSC: 768(H) X 494(V)
Horizontal ResolutionPAL/NTSC
Optical Zoom36X28X
Digital Zoom12X
Minimum IIluminationColor Mode:
1/60 s mode: 0.7 lux (typical) (F1.4, 50IRE)
1/4 s mode: 0.07 lux (typical) (F1.4, 50IRE)
White/Black Mode:
0 lux (Lights On)
0.01 lux ( Lights Off)
White BalanceAuto
ExposureAuto/Manual
FocusAuto/Manual
S/N RatioNot less than 50dB
BLCOn/Off/Auto
WDR 150XYesNo
Digital Image StabilizationOn/Off
Day/NightYes
Lensf=3.4mm~122.4mm; F1.6 to F4.5f=3.5mm~98 mm; F1.35 to F3.7
View Angel57.8° (wide) to 1.7° (tele)55.8° (wide) to 2.1° (tele)
PTZ
Pan Range360° Continuous
Pan SpeedControl speed: 0.05° -240° /s, adjustable; Preset speed: 240° /s
Tilt Range-15° ~90° (Auto Flip)
Tilt SpeedControl speed: 0.03° ~160° /s, adjustable; Preset speed: 160° /s
Presets256
Presets Precision± 0.05°
Light(For IR Version)
IR Wave Length840nm940nm
IR Range60m30m
Light SwitchManual/Auto
Light(For White Light Version)
Color Temperature6500K
Light Range60m
Light SwitchManual
Gerneral
Comm. InterfaceRS-485
ProtocolPELCO-P/PELCO-D
Baud Rate2400/4800/9600/19200BPS (Self Adaptive)
Address0~255
VoltageDC10.8-28V
Power10W (Standby)
25W (Aux lights ON, defogger ON, and P/T running continuously)
Working Temp. -35° C~65° C
IP CodeIP66, TVS, Anti-surge
DimensionsΦ 130(mm)× 163(mm) w/o damper (standard)
Φ 140(mm)× 189(mm) with damper (optional)
Weightstandard: 1.6kg
With damper: 2kg
