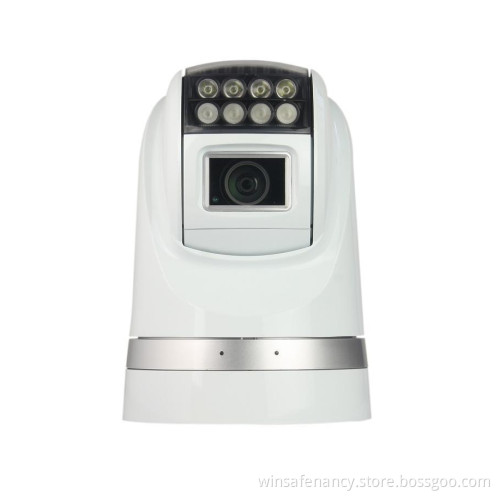

36X Portable All Condition White Light PTZ Cameras, IP67 (PAC-S3601-WL)

Features
Efficient IR lighting with range up to 120M, auto switch as per zooming;
New damping system with digital image stabilization(DIS) for all kinds of tough conditions;
New design of PTZ driving system provides anti-vibration performance and high precision of PTZ positioning;
Vacuum and magnetic sucker for secure and convenient installation;
Smart hidden seamless wiper, clear camera view;
Wide range of voltage input, anti-surge, to avoid wrong connection;
IP Protection up to IP67, built-in defoggingg device and heater;
Full Aluminum compact PTZ case with high strength;
Auto heating before bootup under extreme cold enviroment;
Change address easily with software
Image flip for stand/ceiling mount.
Specification
CameraImage Sensor1/4" Sony EXView HAD CCD
Effective PixelPAL: 752(H) X 582(V); NTSC: 768(H) X 494(V)
Resolution550TVL
Video SystemPAL/NTSC
BLCON/OFF
Optica Zoom36X 28X
Digital Zoom12X
Min Iilumination0.01lux(Lights off)/0Lux(Lights On00.0015Lux(Lights off)/0Lux(Lights On)
White BalanceAuto/Manual
FocusAuto/Manual
ExposureAuto/Manual
S/N RatioNot less than 50dB
WDR(150X)YesNo
Image StabilizationOn/Off
Digital Noise Reduction1~5 Steps
Day/NightYes
Lensf=3.4mm~122.4mm, F1.6 to F4.5f=3.5mm~98 mm, F1.35 to F3.7
View Angle57.8º (wide) to 1.7º (tele)55.8º (wide) to 2.1º (tele)
PTZPan Range360º Continuous
Pan Speed0.04 º - 120º /s adjustable
Tilt Range-15° ~90° With image flip
Tilt Speed 0.3° ~90° /s adjustable
Preset SpeedPan: 120° /s; Tilt: 90° /s
Preset256
Preset Precision± 0.05°
IRIR Wave Length840nm940nm
IR Lamp Power30W(including driver)15W(including driver)
IR light Power10W5W
IR Range120M60M
IR SwitchAuto/Manual
GeneralComm. InterfaceRS-485
ProtocolPELCO-P/PELCO-D
Baud Rate2400BPS, 4800BPS, 9600BPS, 19200BPS (self-adaptive)
Address0-255
VoltageDC 10.8~ 28V
Power20W(Heater and IR Off)
40W(Heater On and IR Off)
70W(Heater and IR On)
Working Temp. -45° C~+65° C
IP IndexIP67, TVS, Anti-Surge
DimensionsΦ 190(mm)× 300(mm) with damper
Φ 190(mm)× 275(mm) w/o damper
WeightStandard: 4.9kg
Optional: 5.65kg(with damper, optional)
