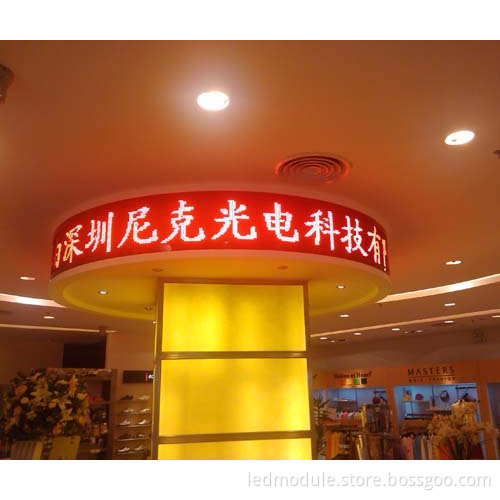

Indoor Advertising Round LED Display Screen Board

Basic Info.

Model NO.:NK-P10-1R
Tube Chip Color:Single Color
IP Rating:IP65
Pixel Configuration:1r
Pixel Pitch:10mm
Display Function:Text Display
Scanning Mode:1/4 Scan
Certification:CE, RoHS, CCC
Pixel Density:10000 dot / m²
Average Power Consumption:300W / m²
Color:Red/Green/Yellow/White/Bule
Module Size:320mmx160mm
Brightness:2500~4000CD/M2
Resolution of Module:32*16dots
Ambient Temperature:-20--+50 Centigrade Degree
Ambient Humidity:≤90 Percent
Mtbf:≥10, 000 Hours
Lifespan:≥50, 000 Hours
Detective DOT Rate:< 0.0002
Digital Advertising Display:LED Interactive Walls
Export Markets:Global

Description	Technical parameter
Specification	Module size	320*160mm
	Pixel pitch	10mm
	Pixel density	10, 000dots/m2
	Pixel configuration	1R
	Pixel resolution	W: 32dots x H: 16dots
	Module weight	0.68 kgs/pc
	Best viewing angle	10-100m
	Temperature	Storage: -35º C ~ 80º C
		Working: -20º C ~ 80º C
	Brightness of white balance	2500-3500cd/sqm
	Operating ambient humidity	10%--95%
	MTBF	≥ 10, 000hours
	Life span	≥ 100, 000hours
	Flatness	Tolerance of interpixel ≤ 0.3mm
		Tolerance of modules clearance≤ 0.6mm
	Power switch	Automatic switch
	Horizontal viewing angle	120degree
	Vertical viewing angle	110degree
	Warranty time	2 years
	Control method	Synchronization or asynchronization
