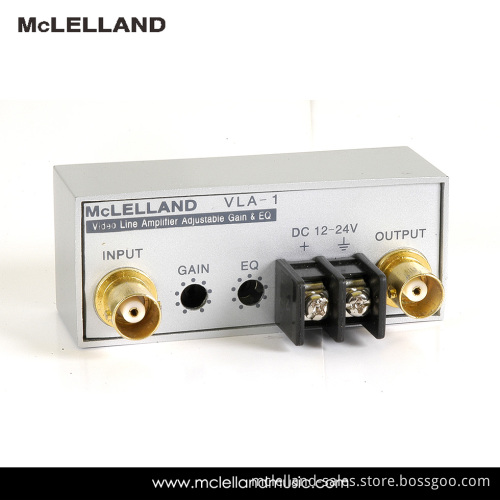

Video Line Amplifier-Adjustable Gain&EQ (VLA-1)

Video Line Amplifier-Adjustable Gain&EQ(VLA-1)

The VLA-1 is the compact, high quality, and cost effective solution box for a variety of applications, which simultaneously adjusting the high frequency attenuation, correcting the color signals distortions and differential delay, to compensate the signal loss and preserve video quality when the security cameras associated with monitoring or recording equipment driving video signals down long cables. The VLA-1 also come with the Gain control which can be adjusted the overall signal level, and the EQ control boosts the upper frequencies most susceptible to loss.

Specification:

Input: 75 Ohm, BNC, Ground-referenced
Input Level: 1V p-p video
Gain: Unity to +5 dB (adjustable)
Bandwidth: 10 MHz
Equalization Adjustment: Flat to +4 dB @ 3.58 MHz (adjustable)
Flat to +7 dB @ 5 MHz (adjustable)
Equalization Curve: Optimized at each setting for flattest response of video signal
Components without square-wave overshoot
Residual Noise: Output: 75 Ohm source terminated, BNC, Ground referenced Power
Requirement: DC 12-24Vac, @30mA, Ground-referenced
