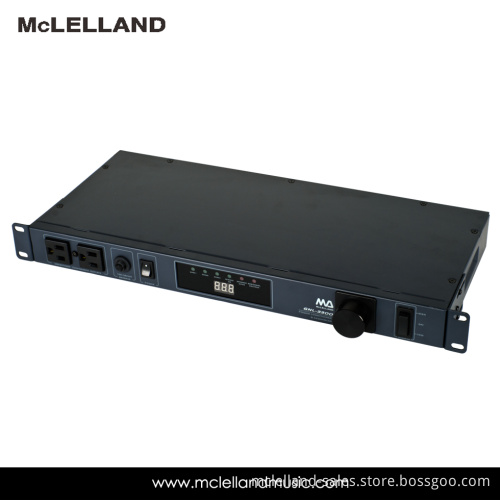

Power Sequencer (GNL-3300)

Power Sequencer(GNL-3300)

The GNL-3300 is a power conditioner and sequencer which power-up in 3 delayed outlet

Groups for European Standard with IEC connector. It comes with excellent McLelland

Designing including multi- stage filtering for RFI ( radio frequency interference). It will

Provide a stable power and good circuit protection to your system.

Features:

Power-up in 3 delayed outlet groups: 3xDigital Filtered, 3xAnalog Filtered,

2xHigh Power Filtered IEC outlets

Power-down reverses sequence

RFI Filtering with multi-stage PL filter

Two unswitched outlets on front panel

Circuit breaker

Rated 15Amps

Multiple units may be linked to handle higher currents

Four pairs of switched outlets on rear panel

Front panel digital LED meter displays incoming AC line voltage

Specification:

Current rating: 15 A

Operating Voltage: 90 to 140 VAC /170 to 260 VAC

Over Voltage Shutdown: 140 VAC Version

Spike Protection Modes: Line to neutral, zero ground leakage

Delay Interval: 5 seconds

Response time: 1 nanosecond

Maximum surge current: 6, 500 A

Dimensions: 4.45 x 48.3 x 19cm (HWD)
