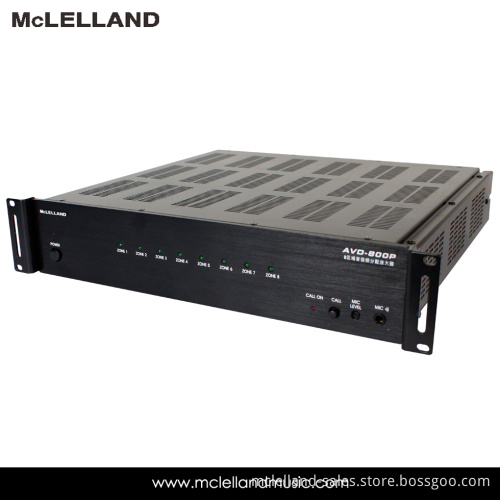

Mutil-Room Audio/Video Distribution Amplifier with 8 Sources

Mutil-room Audio/Video distribution Amplifier with 8 Sources's AVD-800P


Feature:

* Output Power: 20W 8 Ohms x 8 Zone (16 Channels)

* Phoenix Connectors: For audio signal outputs.

* UTP CAT5 Transmission System

* 8 RJ45 Connectors: For keypads including video signal output.

* 6 Stereo Source Inputs: 2 audio 4 video (or audio) and 4 camera module inputs are acceptable.

* Maximum Expand System: 16 x AVD-800P.

* Independent IR Emitter output for each zone.

* Trigger On and External Mute jack on rear panel.

* The Control of Keypad: Volume / Treble / Bass / Source

* The Control of IR Pad: Volume / Treble / Bass / Source / Mute / Balance

* DIP switch for AGC level and address select on rear panel.

* Power Supply: AC 115V 60 Hz / 230V 50 Hz, Can be switched.

* Dimension: D 413 x H 88 x W 427 mm.
