Class Amplifier 20W with RS232/ 3 Line Inputs (AMP-D20LR)

Class Amplifier 20W with RS232/ 3 Line Inputs (AMP-D20LR)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T

Product Description

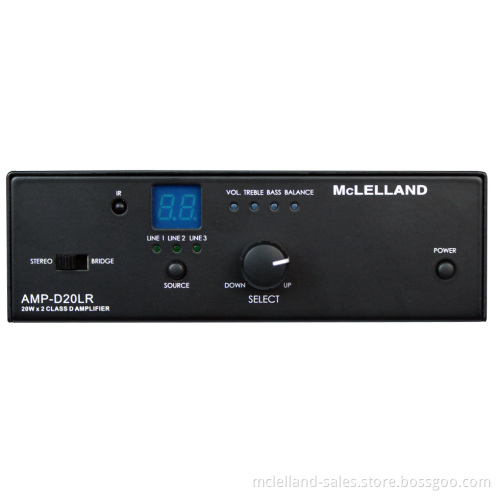

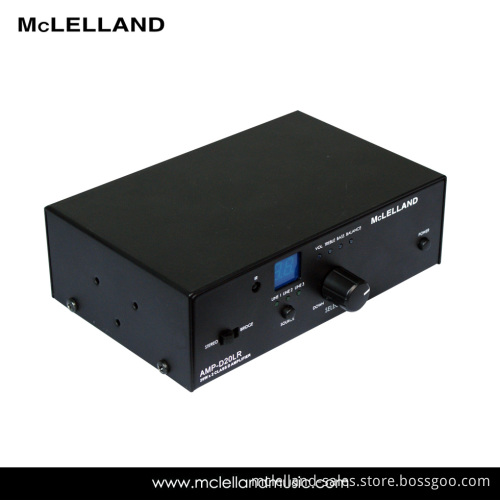

CLASS AMPLIFIER 20W with RS232 /3 LINE INPUTS(AMP-D20LR)

Feature:

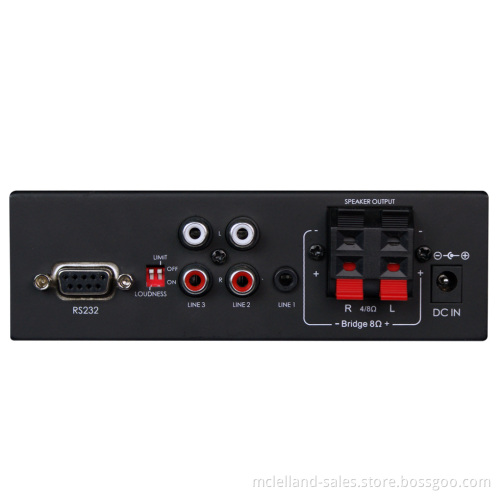

Audio inputs : RCA/3.5 Mini Jack
RS232 Controller
Input Selection
VOL/TREBLE/BASS/BALANCE Adjustment
IR Remote Control (Optional)
Limit and Loudness ON/OFF switch (DIP switch)
Stereo/Mono Selectable
Speaker output: Terminal Blocks
DC24V Input Jack

SPECIFICATION:
Output power:2x17 W@4Ω THD1% RMS ( 2x20W MAX)
THD1%: 8.5W @8Ω
THD1%: 31 W @8Ω
S/N: -95dB 1K(4Ω)
THD: 1%(17W 4Ω)
Frequency Response: 35Hz~50KHz(-3dB)
nput Sensitivity: 330mV(17W 4Ω)
Input Impedance (Audio): 10K
Power input: DC 24 V
Power consumption: 40W(17W 1% 4Ω)
Bridge mode support 40W for speak out ( Mono. Type)
