Class Amplifier 20W with RS232/2 Line Inputs/Bluetooth (AMP-D20BR)

CLASS AMPLIFIER 20W with RS232/2 LINE INPUTS/BLUETOOTH(AMP-D20BR)

Feature:


Audio inputs : RCAx2 / 3.5 Mini Jack
Bluetooth connection
Internal Microphone
RS232 Controller
Input Selection
VOL/TREBLE/BASS/BALANCE  Adjustment

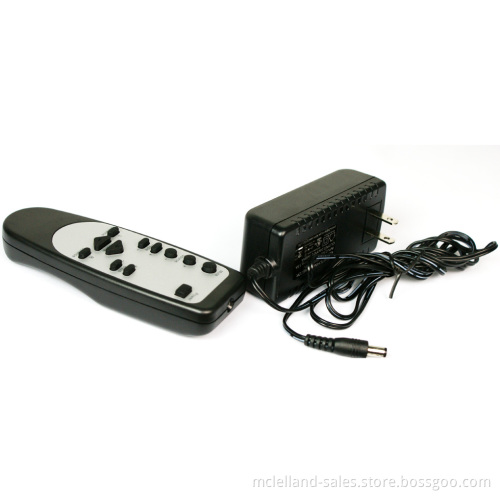

IR Remote Control (Optional)
Limit and Loudness ON/OFF switch (DIP switch)
Stereo/Mono Selectable
Speaker output: Terminal Blocks
DC24V Input Jack

SPECIFICATION:

Output power:2x17 W@4Ω THD1% RMS ( 2x20W MAX)
THD1%: 8.5W @8Ω
THD1%: 31 W @8Ω
S/N: -95dB 1K(4Ω)

THD: 1%(17W 4Ω)
Frequency Response: 35Hz~50KHz(-3dB)
Input Sensitivity: 330mV(17W 4Ω)
Input Impedance (Audio): 10K
Power input: DC 24 V
Power consumption: 40W(17W 1% 4Ω)
Bridge mode support 40W for speak out ( Mono. Type)
