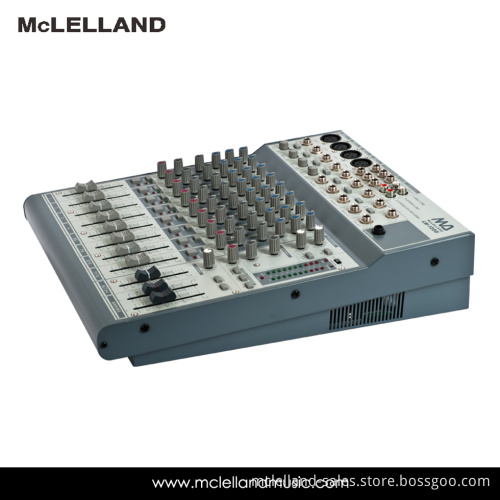

12 Channel Mixing Console with 4 Balance/Unbalanced Mono Line Input

Console Mixer(LM-1200)

Features:

High quality 60mm Japanese Faders

Highly accurate 10 segment barograph meters

48V low-noise Deglobal Phantom power

3-band EQ in all input channels (12KHz, 2.5KHz, 80Hz)

75Hz, 18dB/ octave low cut filter on mono input channels

2 Stereo EFX returns. / Balanced inputs and outputs

EFX Return to main. / AUX 1, 2 and ALT3-4 switch

Peak and signal LEDs on mono Channel

Two AUX send (Pre and Post fader switch on AUX1)

Separate Main Mix. Control room, ALT3-4 and headphone outputs

Two track inputs assignable to main mix, control room/headphone Outputs

4 Balance/unbalanced mono line input

4 low noise high headroom XLR mic input

4 pairs of balanced/unbalanced stereo line inputs with +4/-10 input gain/sensitivity selector.

ALT 3-4 extra stereo Aux

PEF/SOLO and Mute/ALT3-4 on all Channels

Specification:

THD: 0.025% (THD+N)

Frequency response: 10Hz-60KHz (+3dB, -3dB), 20Hz-20KHz (+0dB, -0dB)

S/N rate (A weight): 80dB

Cross talk: -70dB (1KHz and10KHz)

MIC input sensitivity: -68dB (Normal output: +4dBm)

Line input sensitivity: -50dB (Normal output: +4dBm)

Stereo input sensitivity: -12dB (Normal output: +4dBm)

Gain control: 50dB

EQ control: ± 15dB (High: 12KHz; Mid: 2.5KHz; Low: 80KHz)

MAX out: +22dBm

Impedance: MIC input impedance 3KΩ

Other input impedance: 10KΩ

Out impedance: 120Ω

Headphone max out: 50MW/8Ω

DC global phantom power: +48V

Noise: -128DbM (A weight, Rs=150Ω )
