USB Audio Interface (Mix Lite PRO)

USB Audio Interface(Mix Lite PRO)

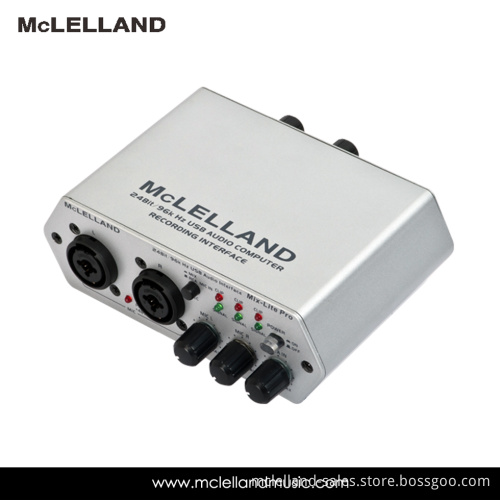

The Mix-Lite PRO 24 Bit/96K Hz USB audio interface is designed as an audio interface between analog and digital audio source, recorders and a computer with USB 1.1 or 2.0 connections. It is suitable for use on stage and in the sound recording studio as well as for home recording and multimedia applications. Microphone signals, analog line signals and digital signals can be transmitted with superior sound quality to a computer where they can be edited, mixed and published with corresponding production software.

Features:

USB audio interface with integrated low-noise microphone preamplifiers
Plug & play audio interface connects microphones and line inputs with your computer for recording and playback.
Compatible with PC and Mac no setup required
High-resolution AD/DA converters(24 bit /44.1K Hz, 48K Hz, and 96 K Hz) for high-end audio quality
High-speed USB 2.0 support
Sipport ASIO line Protocol
Two microphone inputs( combination XLR/6.3mm jack, bal. )
+48V phantom power can be switch on, status LED
Stereo RCA line input
Analog inputs with gain control and signal/clip LED
Digital S/PDIF input and output
Monitoring of input and output via adj ustable stereo headphones output(3.5mm jack)
Balanced L/R 6.3mm jack stereo line output for PA applications
Power supply via USB, supplied DC 9V power unit or 9V block battery
The interface can also be used without a computer, e. Q., as an independent microphone preamplifier for direct monitoring
Work with any customary software for PC and Mac

Specification:

Power supply: DC 9V via sipplied power unit, USB port, or battery
Power consumption: 6W
Frequency range: 20 20, 000 Hz, ± 1 dB
THD: S/N ratio: 90 dB
Input impedance: 1k Ohm(Mic), 40k Ohm(Line)
Maximum gain: 48dB
Inputs: 2× Mic/Instrument(combination XLR/6.3mm jack, bal. )
1× Line(stereo RCA)
1× S/PDIF(RCA)
Outputs: 1× Line L/R(6.3mm jack, bal. )
1× Monitor(3.5mm stereo jack)
1× S/PDIF(RCA)
1× USB(type B)
A/D & D/A converter: 24 bits
Battery life: 7 hours with 2 phantom-powered microphones
Sampler frequency: 44.1 K Hz, 48K Hz, or 96 K Hz
Dimensions: 144*127*50mm
Weight: 440g
Required operating system: Windows 98 SE/ME/2000/XP/Vista/7, Mac OS 9.1/OS*
