CE Approved Tripod Barrier (CPW-451AF)

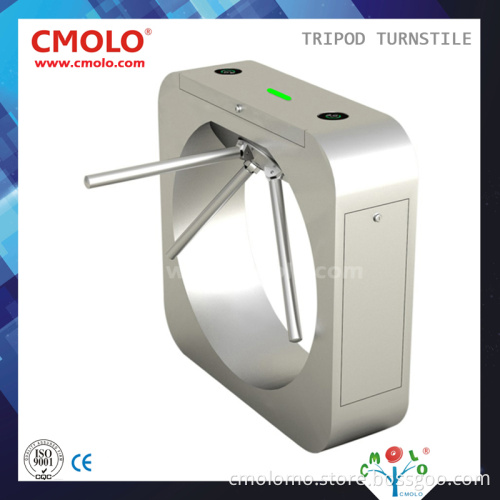

CE Approved tripod turnstile / tripod barrier CPW-451AF

Size: 1000*990*280mm

Electric- Specification:

Machine core: German technical machine core
Operation voltage: AC220V / AC85-230V
Working voltage: DC 24V
Start power consumption: 90W
Operation power consumption: 30W
Standby power consumption: 7.5W
Driven motor: European imported brushless DC motor
Communication interface: One channel RS485 (default) / two channels RS232 (default) / CAN bus and Ethernet (optional)
Transit speed: 30 persons per minute (normally closed mode) ~ 45 persons per minute (normally open mode)
Temperature: -20 to 60 Degress
Humidity: 0~95% (No condensation)
Work environment: Indoor / outdoor (with rain-tent cover)

Customized Features:

Alternative materials, finishes and custom design
Design the housing with different materials according to the requirement of customers, including 304 and 316 stainless steel, etc.

Make the appointed surface finishes of the machine surface according to the requirement of customers, including brushed surface, polishing surface, etc (colors are optional)

Integrate door access control systems (welcome to choose our door access control C-T2000 or C-L2000)
Integrate the inside reader that the customer supplies.

Custom-made the mounting bracket for the reader.

Design the specialized door access control systems according to the requirement of customer.

Ticketing systems integration
Integrate the ticketing systems that the customer supplies

Design the specialized ticketing systems according to the requirement of customer.
Direction Indication
Install the LED display in the front of the housing.

Install the LED display in the other places of the housing.
