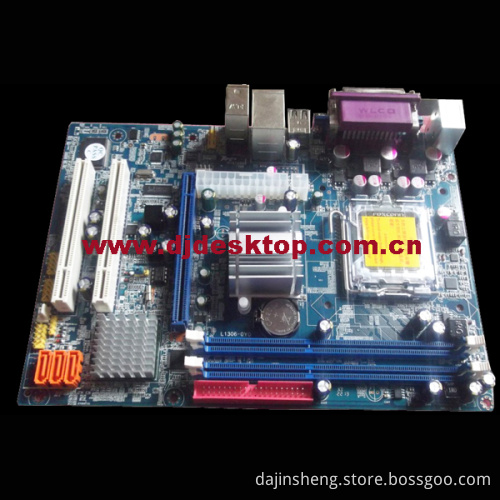

G33-775 Computer Mainboard with 2*DDR3/2*PCI/IDE

Computer Mainboard G33 Socket 775 Support DDR3

1. Intel G33+ICH7 Chipset, LGA 775, Supports 1333/1066/800/533 MHz FSB
2. Supports 2*DDR3 1333/1066/800 memory, Dual Channel, Biggest 8GB by 2 slots
3.3*SATA, 4*USB2.0, 1*VGA, 1*PCI Express x16, 1*PCI Express x1
4. Realtek 8105E 10/100M LAN Controller


CPU
LGA775 for Intel Core 2 Extreme quad-core / Core 2 Extreme dual-core / Core 2 Quad / Core 2 Duo Pentium processor Extreme Edition/ Pentium 4 / Celeron D/P4
Supports 1333/1066/800/533MHz FSB
Chipset
Northbridge: Intel G33 chipset
Southbridge: Intel+ICH7
Memory
Supports 2*DDR3 1333/1066/800 memory
Dual Channel architecture support up to 8GB by 2 DIMM slots
Graphics
Intel Graphics Media Accelerator 3100
1* VGA port
Audio
Realtek ALC662 6 Channel Audio Codec
LAN
Realtek 8105E 10/100M LAN Controller
Expansion Slot
1 *PCI Express X16 slot
1 *PCI slots
I/O Connectors
3 *SATA 3Gb/s connector
1 * front panel connector
1 * front audio connector
4 * USB 2.0/1.1 connector
4 *USB 2.0/1.1 port
1 *COM port
1 * PS/2 port
1 * VGA port
1 *RJ-45 port
1 *LPT port
1 *audio jacks
On Board Ports
24 PIN ATX POWER PORT
4 PIN ATX 12V POWER PORTc
4*USB 2.0 PORTS
1*CPU fan connector
1*F_AUDIO PORT
Accessories
CD DRIVER, BACK PANEL, MANUAL, SATA CABLE, IDE CABLE.
SIZE
240mm x 170mm
PACKING
20PCS IN ONE CARTON
