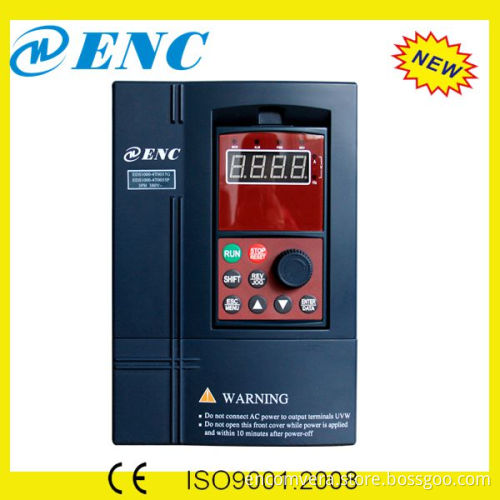

Eds-V300 Current Vector Inverter 0.4kw to 55 Kw

1. Product name:
Frequency inverter, AC drive, Micro inverter, Frequency converter, mini inverter, VFD, Variable frequency drive, Variable speed drive, VSD, Speed controller, Energy saver

2. Features for EDS-V300

1. Big torque at low frequency: Output 150% rated torque at 0.5Hz;
2. Adopt current vector control technology, and optimize V / F control simultaneously
3. High steady-state accuracy: Error rate of speed signal input and actual speed output is ± 0.5%
4. Unique self-learning technology: After entering the motor nameplate parameters, the inverter will start static and rotary tuning itself, in order to dynamically recognize motor parameters needed by motor vector control
5. Good robustness: Generally not sensitive to motor parameters, not too dependent on parameters change, strong resistance to environment temperature change
6. Simple and easy to adjust: No special setting for the motor and controller parameters. If any wrong parameter setting, just resume to factory setting
7. Fast and stable high speed down response, maximum frequency accelerating /decelerating time can be 0.1s
8. Even there are sudden change of load, rapid acceleration and deceleration, inverter can do fast and intelligent self-adjustment. So rare over current, short circuit fault and etc.
9. Offer many kinds of frequency input ways, RS485 communication interface of Modbus protocol as Standard configuration
3. Applications:
The inverters are mainly used in woodworking machinery, stone machinery, mining machinery, printing machinery, packaging machinery, food machinery, textiles, chemicals, transport, wire and cable, ceramics, building materials, tobacco and other industries and drawing machine, treadmill, industrial air conditioners, fans, pump applications.

4. We also have other high performance series of frequency inverters
EDS1000 series: 1 phase and 3 phase 220V± 15%/380V± 15%/690V± 15%input, 0.4kw to 220kw 0.5hp to 290hp output

EDS800 mini serise: 1 phase and 3 phase 220V± 15%/380V± 15% input, 0.2kw to 1.5kw 0.2hp to 2 hp output

EN500 new series: 3 phase 380V± 15%input, 75kwto450kwoutput

EDS2000 series: 3 phase 380V± 15% input, 2.2kw to 400kw

EDS780 series 1 phase 220V± 15% input, 3 phase 0.75kw output

EDSV300 series: 1 phase and 3 phase 220V± 15%/380V± 15%input, 0.4kw to 55kw

EDS-A200 series: 1 phase 220V± 15% input, 1 phase 0.2kw to 3.7kw output
